The creating of a program for the test (The LIFE game)
It takes up LIFE game as the sample program.
- The game which simulates fate of the creature
- As for the grid of 3×3, it defines the change of the creature
of central mass by the status around of 8 masses.
- The birth : If there are three creatures around when there is
not life in the center, the creature in the center survives.
- The maintenance : If there are 2-three creatures around when
there is life in the center, the creature in the center survives.
- The death : In case of the other, there is not a creature in the
center.
- It should process a program as follows.
- It prepares the early stage area and it arranges a creature beforehand.
- It displays information on the early stage area on the screen.
- It does a laying over as occasion demands. (Because the
operation of the processor is early)
- According to the algorithm of LIFE, it demands and it saves information on the creature every each mass to the workarea.
- When applying algorithm about all masses, the creature information of the next generation is complete in the workarea.
- It copies contents in the workarea on to the early stage area.
- 2. It repeats
since then.

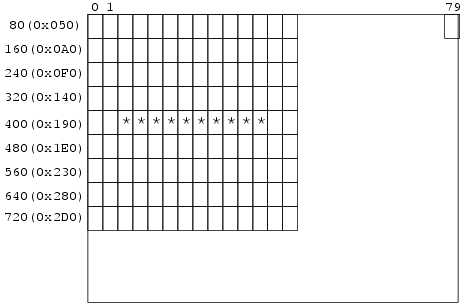

In case of the character-type display, it should do a character code in case of writing to the memory of the VRAM address at the part to want to display.
When making coordinates at the part VRAM OBJ DO, to want to write the base address of the VRAM in X, Y, it should write in the address of the X of + of VRAM + (the Y * 80).
It assembles a program as follows and it is made to be able to be arranged as the initial program in the program memory beforehand.
kiteasm life.asm
lst2ram -s -f -2 life.lst
The initialization of the memory uses $readmemh as follows.
initial
begin
$readmemh
("life.ram", MEM) ;
end
LIFE program is shown below.
;;
;; Life Game 48x16 for LCD Monitor on ATLYS Board
;;
.word MAIN ; Start Vector
.word 0
.word 0
.word 0
.word 0
.word 0
.word 0
.word 0
.word 0
.word 0
.word 0
.word 0
.word 0
.word 0
.word 0
.word 0
MAIN : ld16 #STACK ; sp=0x800
mv sp, acc
;;
;; Main Loop
;;
NEXT1 :
;;
;; Display DATA1 area
;;
call disp ; copy DATA1 to Display
call wait ; wait
;;
;; Clear DATA2 area
;;
ld16 #768
st X
ld DAT2
mv ixr, acc
LOOP3 : ld #0
st ixr, 0
inc ixr, ixr
ld X
dec acc, acc
st X
jpz NEXT3
jp LOOP3
;;
;; for( x=0 ; x<48 ; x++ )
;;
NEXT3: ld #0
FOR1: st X
sub #48
jpz FOREND1
;;
;; for( y=0 ; y<16 ; y++ )
;;
ld #0
FOR2: st Y
sub #16
jpz FOREND2
BODY: ld #0 ; NoOf = 0
st NoOf
ld X ; if( what1(x-1,y-1) ) NoOf++;
dec acc, acc
push
ld Y
dec acc, acc
push
call what1
jpz SKIP1
ld NoOf
inc acc, acc
st NoOf
SKIP1: pop
ld Y ; if( what1(x-1 ,y ) ) NoOf++;
push
call what1
jpz SKIP2
ld NoOf
inc acc, acc
st NoOf
SKIP2: pop
ld Y ; if( what1(x-1,y+1) ) NoOf++;
inc acc, acc
push
call what1
jpz SKIP3
ld NoOf
inc acc, acc
st NoOf
SKIP3: pop
pop
ld X ; if( what1(x ,y-1) ) NoOf++;
push
ld Y
dec acc, acc
push
call what1
jpz SKIP4
ld NoOf
inc acc, acc
st NoOf
SKIP4: pop
ld Y ; if( what1(x ,y+1) ) NoOf++;
inc acc, acc
push
call what1
jpz SKIP5
ld NoOf
inc acc, acc
st NoOf
SKIP5: pop
pop
ld X ; if( what1(x+1,y-1) ) NoOf++;
inc acc, acc
push
ld Y
dec acc, acc
push
call what1
jpz SKIP6
ld NoOf
inc acc, acc
st NoOf
SKIP6: pop
ld Y ; if( what1(x+1,y ) ) NoOf++;
push
call what1
jpz SKIP7
ld NoOf
inc acc, acc
st NoOf
SKIP7: pop
ld Y ; if( what1(x+1,y+1) ) NoOf++;
inc acc, acc
push
call what1
jpz SKIP8
ld NoOf
inc acc, acc
st NoOf
SKIP8: pop
pop
ld X ; if( what1(x,y) ) {
push
ld Y
push
call what1
jpz CENTER0
CENTER1:ld NoOf ; if( NoOf == 2 || NoOf == 3 )
sub #2 ; set1(x,y);
jpz SET ; else
ld NoOf ; set0(x,y);
sub #3
jpz SET
jp DEL
CENTER0:ld NoOf ; } else {
sub #3 ; if( NoOf == 3 )
jpz SET ; set1(x,y);
DEL: call SET0
jp SKIP10
SET: call SET1 ; }
SKIP10: pop
pop
ld Y ; y++;
inc acc, acc
jp FOR2 ; };// forend y
FOREND2:ld X ; x++;
inc acc, acc
jp FOR1 ; };// forend x
FOREND1:ld16 #768 ; Copy DATA2 -> DATA1 area
st X
ld DAT1
st PTR1
ld DAT2
st PTR2
LOOP4 : ld PTR2
mv ixr, acc
ld ixr, 0
push
ld PTR1
mv ixr, acc
pop
st ixr, 0
ld PTR1
inc acc, acc
st PTR1
ld PTR2
inc acc, acc
st PTR2
ld X
dec acc, acc
st X
jpz NEXT1 ; Goto Main Loop
jp LOOP4
;;
;; What1 (x, y) return 0 and set Z flag
;; if thare is no object in DATA1 [x, y]
;;
what1 : mv ixr, sp
call check ; area check
jpz return ; if out of area
call adgen ; acc=Y*48+X
st PTR1
ld16 #PTR1
mv ixr, acc
ld DAT1
add ixr, 0 ; acc=DATA1+Y*48+X
mv ixr, acc
ld ixr, 0 ; acc=* (DATA1+Y*48+X)
or #0
return: ret
;;
;; check boundary
;;
check: ld ixr, 2 ; load X
sub #-1 ; if out of left side then return Z
jpz return
ld ixr, 2
sub #48 ; if out of right side then return Z
jpz return
ld ixr, 1 ; load Y
sub #-1 ; if out of upper side then return Z
jpz return
ld ixr, 1
sub #16 ; if out of lower side then return Z
ret ; return NZ if within area
;;
;; acc=48*Y+X
;;
adgen: ld ixr, 1 ; acc=the Y
add ixr, 1 ; acc= 2*Y
add ixr, 1 ; acc= 3*Y
asl ; acc= 6*Y
asl ; acc=12*Y
asl ; acc=24*Y
asl ; acc=48*Y
add ixr, 2 ; acc=48*Y + The X
ret
;;
;; SET1 (x, y) sets "1" into DATA2 [x, y]
;;
SET1: mv ixr, sp
call adgen ; acc=Y*48+X
st PTR1
ld16 #PTR1
mv ixr, acc
ld DAT2
add ixr, 0 ; acc=DATA2+Y*48+X
mv ixr, acc
ld #1
st ixr, 0 ; * (DAT2+Y*48+X)=1
ret
;;
;; SET0 (x, y) sets "0" into DATA2 [x, y]
;;
SET0: mv ixr, sp
call adgen ; acc=Y*80+X
st PTR1
ld16 #PTR1
mv ixr, acc
ld DAT2
add ixr, 0 ; acc=DATA2+Y*80+X
mv ixr, acc
ld #0
st ixr, 0 ; * (DAT2+Y*80+X)=0
ret
;;
;; Display : Copy DATA-> VRAM area
;;
disp: ld #16
st Y
ld16 #VRAM940
st PTR2 ; ptr2=dest. pointer
ld DAT1
st PTR1 ; ptr1=DATA1 pointer
disp1: ld #48
st X ; The X=48
disp5: ld PTR1
mv ixr, acc
ld ixr, 0
push
ld PTR2
mv ixr, acc
pop
or #0
jpz disp2
ld #0x4f ; 'O'
jp disp3
disp2: ld #0x20 ; ' '
disp3: st ixr, 0
ld PTR1 ; ptr1++
inc acc, acc
st PTR1
ld PTR2 ; ptr2++
inc acc, acc
st PTR2
ld X ; x--
dec acc, acc
st X
jpz disp4
jp disp5
disp4: ld PTR2 ; ptr2 += 32
add #32
st PTR2
ld Y ; y--
dec acc, acc
st Y
jpz return
jp disp1
;;
;; wait
;;
wait: ld #10
LOOP22: push
ld #0
LOOP2: dec acc, acc
jpz LOOP21
jp LOOP2
LOOP21: pop
dec acc, acc
jpz return
jp LOOP22
;;
;;
;;
DAT1: .word DATA1 ; DATA1 pointer
DAT2: .word DATA2 ; DATA2 pointer
X: .word 0 ; Variable x
Y: .word 0 ; Variable y
PTR1: .word 0 ; General pointer 1
PTR2: .word 0 ; General pointer 2
NoOf: .word 0 ; Number of object
;; Current space
DATA1: .space 24 ; line 0
.word 1
.space 11
.space 12
.space 22 ; line 1
.word 1
.word 0
.word 1
.space 11
.space 12
.space 12 ; line 2
.word 1
.word 1
.space 6
.word 1
.word 1
.space 12
.word 1
.word 1
.space 12
.space 11 ; line 3
.word 1
.space 3
.word 1
.space 4
.word 1
.word 1
.space 12
.word 1
.word 1
.space 12
.word 1 ; line 4
.word 1
.space 8
.word 1
.space 5
.word 1
.space 3
.word 1
.word 1
.space 14
.space 12
.word 1 ; line 5
.word 1
.space 8
.word 1
.space 3
.word 1
.word 0
.word 1
.word 1
.space 4
.word 1
.word 0
.word 1
.space 11
.space 12
.space 10 ; line 6
.word 1
.space 5
.word 1
.space 7
.word 1
.space 11
.space 12
.space 11 ; line 7
.word 1
.space 3
.word 1
.space 20
.space 12
.space 12 ; line 8
.word 1
.word 1
.space 22
.space 12
.space 336
DATA2: .space 768 ; Next space
.data 0x800
STACK:
VRAM:
.data 0x940
VRAM940:
