The description of the control signal generation
It is described for a necessary control signal to be output in each condition.

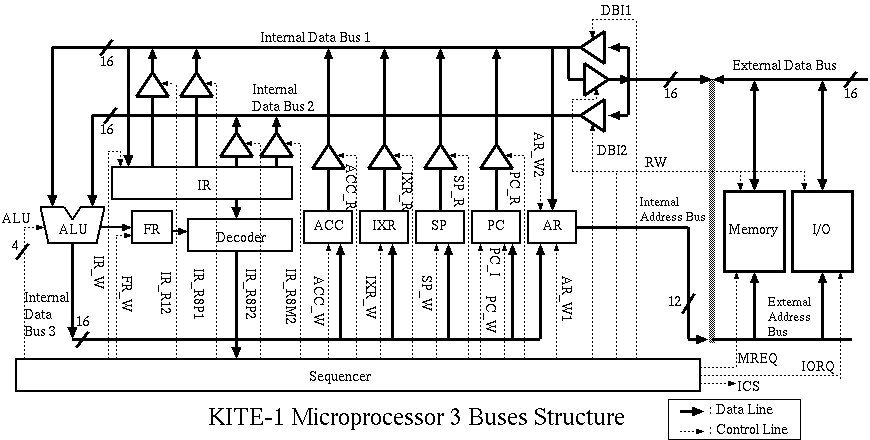

There is a signal as shown by the broken line with the following figure in the control signal which it should control.
Consult the following description and let's make a control signal generation circuit be complete.

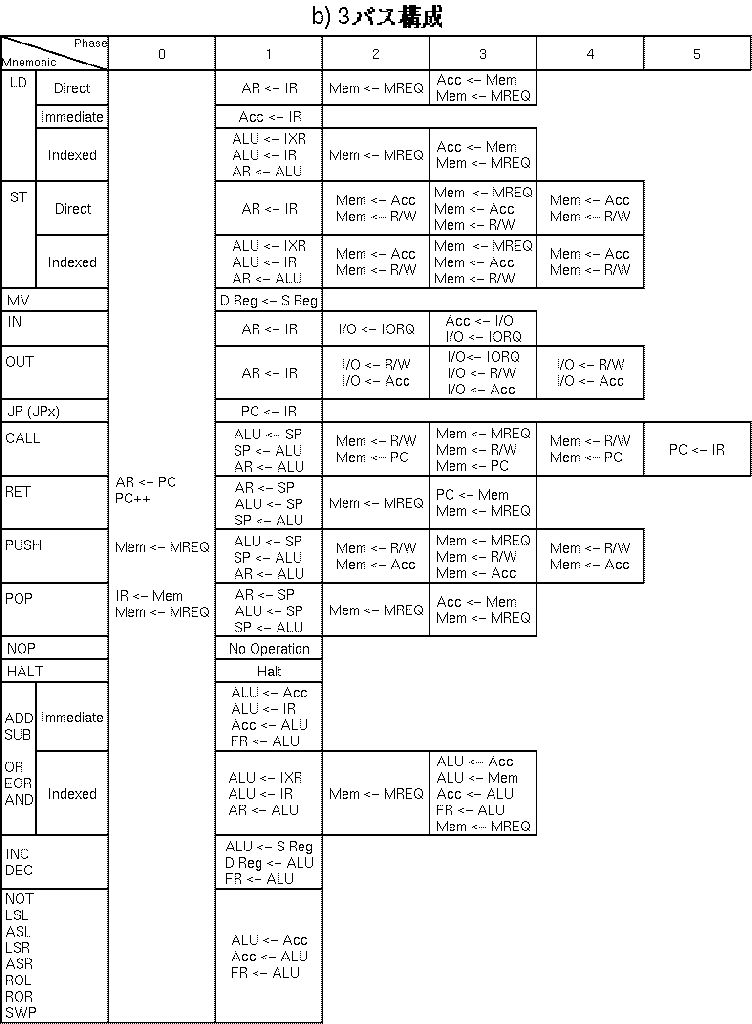

Refer to the supporting execution phase table here.
Incidentally, consult a simple explanation about the description example of the control signal here.
Also, there is a part which sets the operation code of ALU in this file.
Let's include "alu_op.v" beforehand for the operation code of ALU to be able to be used in this file.
`include "alu_op.v"
module dec_seq (...) ;
reg ICS, HALT ;
reg [3:0] ALU ;
//--------------------------------
----------------------------------//
// Controls
//--------------------------------
----------------------------------//
always @ (STATE or FR or IR)
begin
ICS<= 0;
HALT <= 0;
DBI1 <= 0; DBI2 <= 0;
MREQ <= 0; IORQ <= 0; RW <= 0;
ACC_R <= 0; ACC_W<= 0;
IXR_R <= 0; IXR_W<= 0;
SP_R <= 0; SP_W <= 0;
PC_R <= 0; PC_W <= 0; PC_I <= 0;
AR_W1 <= 0; AR_W2<= 0;
IR_R12<= 0; IR_R8P1<= 0; IR_R8P2<=0; IR_R8M2<=0; IR_W<=0;
FR_W <= 0;
ALU <= `IPAS;
case ( STATE )
`HALTING : HALT<=1;
`V1 : MREQ<=1;
`V2 : begin MREQ<=1; PC_W<=1; DBI1<=1; end
`F1 : begin PC_R<=1; AR_W2<=1; PC_I<=1; end
`F2 : MREQ<=1;
`F3 : begin MREQ<=1; IR_W<=1; DBI1<=1; end
// `DEC :
//
// LD Imm.
//
`LDI_1 : begin IR_R8P1<=1; ACC_W<=1; ICS<=1; end
//
// LD index
//
`LDX_1 :
begin
IXR_R<=1; AR_W1<=1;
IR_R8P2 <= !SIGN;
IR_R8M2 <= SIGN;
ALU <= `IADD;
end
`LDX_2 : MREQ<=1;
`LDX_3 : begin MREQ<=1; ACC_W<=1; DBI1<=1; ICS<=1; end
//
// LD Direct
//
`LDD_1 : begin IR_R12<=1; AR_W2<=1; end
`LDD_2 : MREQ<=1;
`LDD_3 : begin MREQ<=1; DBI1<=1; ACC_W<=1; ICS<=1; end
//
// ST index
//
`STX_1 :
begin
...... ; ...... ;
...... ;
...... ;
...... ;
end
`STX_2 : begin ...... ; ...... ; end
`STX_3 : begin ...... ; ...... ; ...... ; end
`STX_4 : begin ...... ; ...... ; ...... ; end
//
// ST Direct
//
`STD_1 : begin ...... ; ...... ; end
`STD_2 : begin ...... ; ...... ; end
`STD_3 : begin ...... ; ...... ; ...... ; end
`STD_4 : begin ...... ; ...... ; ...... ; end
//
// CALL
//
`CALL_1: begin ...... ; ...... ; ...... ; ...... ; end
`CALL_2: begin ...... ; ...... ; end
`CALL_3: begin ...... ; ...... ; ...... ; end
`CALL_4: begin ...... ; ...... ; end
`CALL_5: begin ...... ; ...... ; ...... ; end
//
// Branch Instructions
//
`JP_1 : begin ...... ; ...... ; ...... ; end
//
// Binary Instructions
// ADD, SUB, OR, EOR, AND
`BIOP_IMM_1 :
begin
...... ; ...... ; ...... ;
...... ;
...... ;
...... ; ...... ;
end
//
// BIOP Index
// ADD, SUB, OR, EOR, AND
`BIOP_IDX_1 :
begin
IXR_R<=1; AR_W1<=1;
IR_R8P2 <= !SIGN;
IR_R8M2 <= SIGN;
ALU <= `IADD;
end
`BIOP_IDX_2 : MREQ<=1;
`BIOP_IDX_3 : begin MREQ<=1; ACC_R<=1; ACC_W<=1; ALU<=`OP_A;
FR_W<=1; DBI2<=1; ICS<=1; end
//
// INC & DEC & MV
//
`INC_DEC_MV :
begin
case ( `OP_S )
`RD_ACC : ...... ;
`RD_SP : ...... ;
`RD_IXR : ...... ;
`RD_PC : ...... ;
endcase
case ( `OP_D )
`RD_ACC : ...... ;
`RD_SP : ...... ;
`RD_IXR : ...... ;
`RD_PC : ...... ;
endcase
case ( `OP_6 )
`IR_INC : begin ...... ; ...... ; end
`IR_DEC : begin ...... ; ...... ; end
endcase
...... ;
end
// Mono operand instructions
// NOT and all shift instructions
`MONO_1 : begin ...... ; ...... ; ...... ; ...... ; ...... ; end
//
// INPUT instruction
//
`IN_1 : begin ...... ; ...... ; end
`IN_2 : ...... ;
`IN_3 : begin ...... ; ...... ; ...... ; ...... ; end
//
// OUTPUT instruction
//
`OUT_1 : begin ...... ; ...... ; end
`OUT_2 : begin ...... ; ...... ; end
`OUT_3 : begin ...... ; ...... ; ...... ; end
`OUT_4 : begin ...... ; ...... ; ...... ; end
//
// POP
//
`POP_1 : begin ...... ; ...... ; ...... ; ...... ; end
`POP_2 : ...... ;
`POP_3 : begin ...... ; ...... ; ...... ; ...... ; end
//
// PUSH
//
`PUSH_1 : begin ...... ; ...... ; ...... ; ...... ; end
`PUSH_2 : begin ...... ; ...... ; end
`PUSH_3 : begin ...... ; ...... ; ...... ; end
`PUSH_4 : begin ...... ; ...... ; ...... ; end
//
// RET
//
`RET_1 : begin ...... ; ...... ; ...... ; ...... ; end
`RET_2 : ...... ;
`RET_3 : begin ...... ; ...... ; ...... ; ...... ; end
//
// HALT
//
`HALT_1 : begin HALT<=1; ICS<=1; end
//
// NOP
//
`NOP_1 : ICS<=1;
endcase
end
