Design and implementation of an embedded system on an FPGA

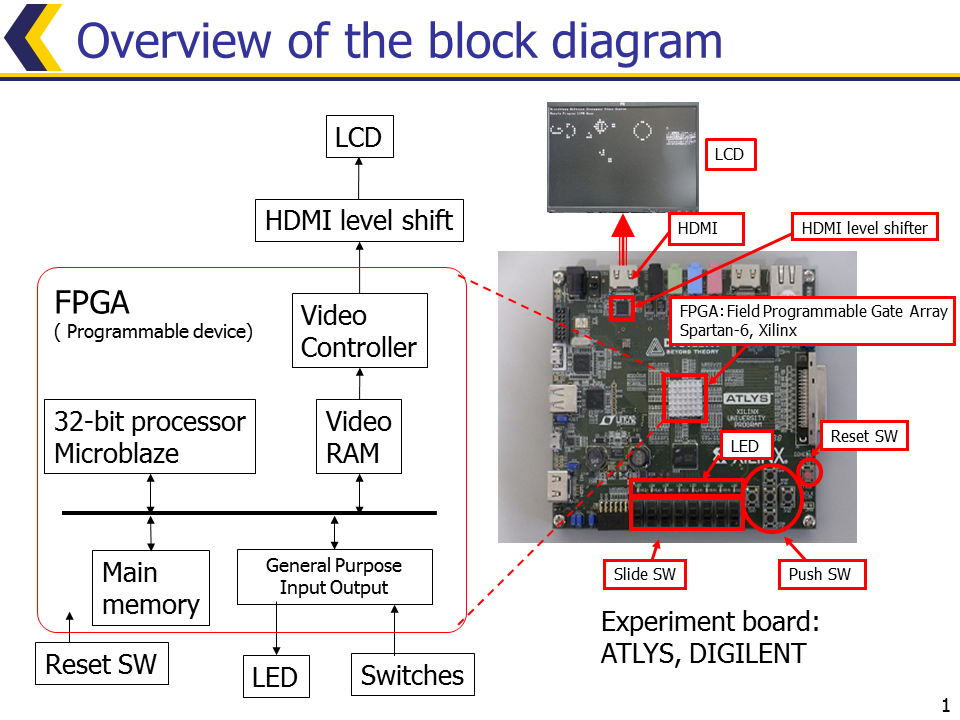

Let's design a simple embedded system which displays the character of
16x16 on a LCD monitor with 1280x720 size using the Microblaze
softcore microprocessor on ATLYS board.
The goal
Understand how to design of the embedded system on an FPGA (Field Programmable Gate Array) and its implementation flow.
- Processor : The Microblaze softcore processor, Xilinx.

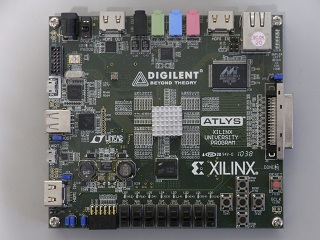

- Board : Digilent ATLYS
- FPGA : XC6SLX45CSG324

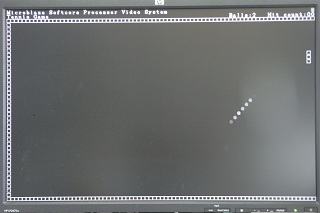

Let's make the system which executes some programs, Conway's game of life and tennis game.
