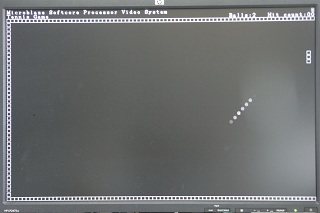

テニスゲーム

#include <xparameters.h>

#define VRAM_BASEADDR (int *)XPAR_CGA_0_S00_AXI_BASEADDR
#define PSW_BASEADDR  (int *)XPAR_GPIO_0_BASEADDR

#define HEIGHT 45
#define DELAY  300

void v_puts( int , int , char * );
void v_putc( int , int , char );
unsigned int getsw( void );
void wait( int );

int  ball;        /* ball count */
int  bx, by;      /* ball x, y */
int  vx, vy;      /* ball vector x, y */
int  nx, ny;      /* ball next x, y */
int  py, pl, npy; /* paddle position, length and next position */
int  hit      ;   /* paddle hit */
int  count;       /* paddle hit count */
unsigned int sw;  /* sw status */
int  delay;       /* delay counter */

int
main()
{
  int  i,j;

  while( 1 ) {
    ball = 3;
    bx = 2;  by = 4;
    vx = 1;  vy = 1;
    py = 10; pl = 3;
    count=0;
    delay = DELAY;

    /* make field */
    for( i=0; i < 80; i++ ){/* all clear */
      for( j=0; j < HEIGHT; j++ ) {
	v_putc( i, j, ' ' );
      }
    }

    v_puts( 0, 0, "Microblaze Softcore Processor Video System" );
    v_puts( 0, 1, "Tennis Game" );
    v_puts(58, 1, "Balls:" );
    v_puts(68, 1, "Hit count:" );

    for( i=0; i < 80; i++ ){
      v_putc( i,       2, 0x00 );/* Top wall */
      v_putc( i,HEIGHT-1, 0x00 );/* Bottom wall */
    }
    for( i=2; i < HEIGHT ; i++ ){
      v_putc( 0, i, 0x00 );/* Left side wall */
    }

    v_puts( 28, 20, "Push center button to start!" );
    while( 1 ) {
      sw = getsw();
      if( sw == 0x01 ) break; /* center = start */
    }
    v_puts( 28, 20, "                            " );

    while( 1 ) {
      /* make paddle */
      for( i=0; i < pl; i++ ){
	v_putc( 78, py+i, 0x00 );
      }
      v_putc( bx, by, '@' );           /* make ball */
      v_putc( 64,  1, '0'+ball );      /* display ball count */
      v_putc( 78,  1, '0'+(count/10)); /* display paddle hit count */
      v_putc( 79,  1, '0'+(count%10)); /* display paddle hit count */

      /* wait */
      wait( delay );

      /* ball move */
      nx = bx + vx;  ny = by + vy;/* next position */
      if( nx == 0 ) {        /* left wall check */
	nx = 1;  ny = by;  vx = -vx;
      }
      if( ny == 2 ) {/* top wall check */
	nx = bx;  ny = 3;  vy = -vy;
      }
      if( ny == HEIGHT-1 ) {/* bottom wall check */
	nx = bx;  ny = HEIGHT-2;  vy = -vy;
      }
      if( nx == 78 ) {/* paddle check */
	for( i=0 , hit=0 ; i < pl ; i++ ) {
	  if( ny == py+i ) {
	    hit++;
	  }
	}
	if( hit ) {/* paddle hit */
	  nx = bx;  ny = by;  vx = -vx;
	  count++;
	  v_putc( 78, 1, '0'+(count/10)); /* display paddle hit count */
	  v_putc( 79, 1, '0'+(count%10)); /* display paddle hit count */
	  if( count >= 5 && delay == DELAY ) delay = DELAY/3;
	}
      }
      if( nx == 80 ) {/* paddle miss hit */
	ball--;
	v_putc( 64, 1, '0'+ball );/* ball count */
	v_putc( bx, by, ' ' );  /* delete ball */
	nx = 2; ny = 4;
	vx = 1; vy = 1;
	if( ball == 0 ) break;
      }

      /* paddle move */
      sw = getsw();
      if( sw == 0x02) npy = py - 1; else/* up   SW */
	if( sw == 0x10) npy = py + 1; else/* down SW  */
	  npy = py;
      if( npy == 2  ) npy =  3;     else/* top wall */
	if( npy == HEIGHT-pl ) npy = HEIGHT-1-pl;      /* bottom wall */

      for( i=0 ; i < pl ; i++ ){/* delete paddle */
	v_putc( 78, py+i, ' ' );
      }
      py = npy;

      v_putc( bx, by, ' ' );/* delete ball */
      bx = nx;  by = ny;
    }

    /* delete ball */
    v_putc( bx, by, ' ' );

    v_puts( 28, 20, "Push center button to restart!" );
    while( 1 ) {
      sw = getsw();
      if( sw == 0x01 ) break; /* center = restart */
    }
    v_puts( 28, 20, "                              " );

  }
  return 0;
}

void v_puts( int x, int y, char *str )
{
  while( *str != '\0' ) {
    v_putc( x++, y, *str++ );
  }
}

void v_putc( int x, int y, char ch )
{
  int *addr;

  addr = VRAM_BASEADDR + (y*80 + x);
  *addr = ch;
}

unsigned int getsw(void)
{
  return *(PSW_BASEADDR);
}

void wait( int delay )
{
  int  i,j;
  for( i=0; i <= 127; i++ ){
    for( j=0 ; j < delay ; j++ ) {
      v_putc( 79, 0, i );
    }
  }
}
