ビデオモジュールの作成

先の "Create or Import Peripherarl"により、ビデオモジュールの雛形が作成できましたが、
まだプロセッサとのインタフェースに関する雛形が作成されただけです。
ビデオモジュールの中身については、すべて作成する必要があります。

ビデオモジュールの仕様

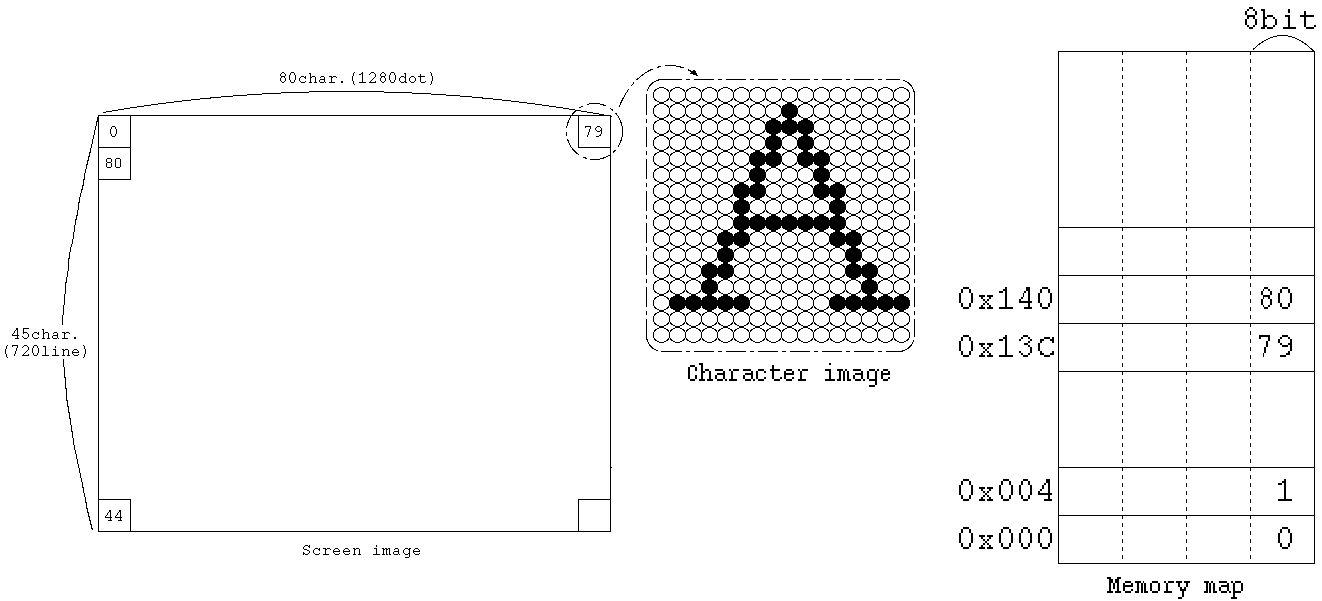

画面構成、文字構成およびメモリマップの対応を下図に示します。
MicroBlazeのような32ビットプロセッサの場合、メモリのアドレスはバイト単位に振られていますが、
1回のデータ読み書きで32ビット(4バイト)の同時アクセスが可能となっています。
したがって、バイト単位でアクセスするメモリの場合は4アドレス飛びに配置されることになります。

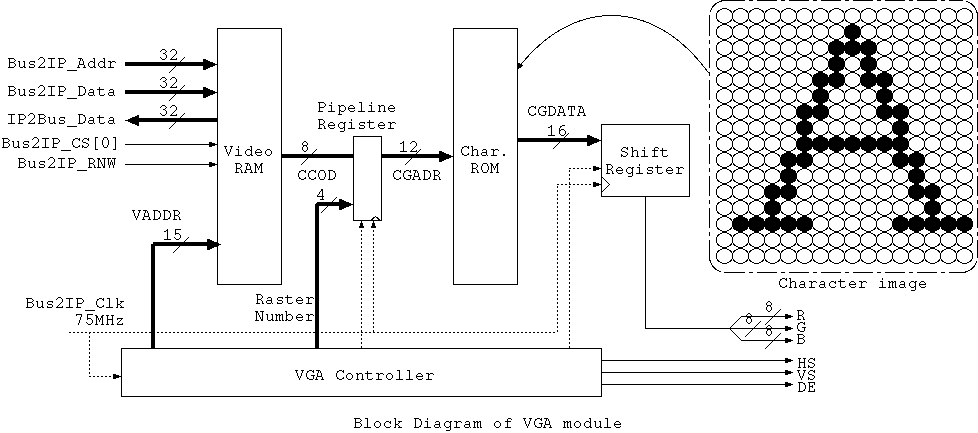

ビデオモジュールのブロック図

ビデオモジュールは、主に以下のブロックからなる。

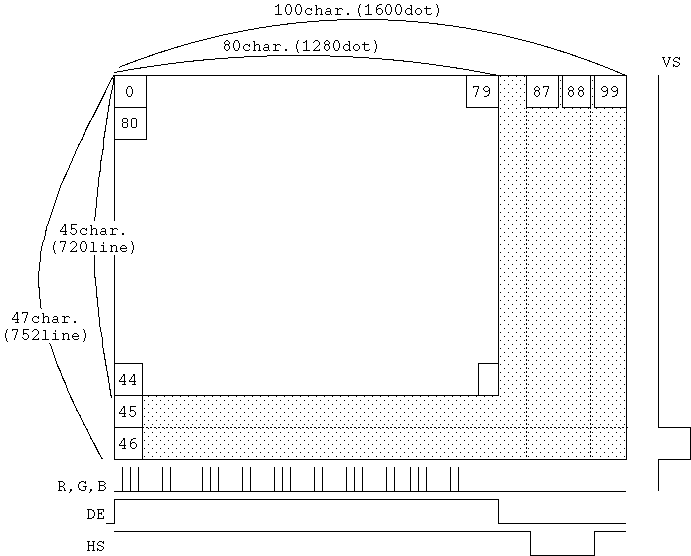

ビデオ画像表示の考え方

液晶モニタへの画像表示は、通常のテレビと同様にラスタスキャンで表示を行う。 これらのカウンタ等を実現するために、以下のような定義をしておくと良いであろう。
`define HMAX 100 // H total dots
`define HSIZ  80 // H Size
`define HSP   87 // H Sync. Pos.
`define HSL    2 // H Sync. Len.
`define HCR   16 // H dots per Char.
`define VMAX  47 // V total Line
`define VSIZ  45 // V Size
`define VSP   46 // V Sync. Pos.
`define VSL    1 // V Sync. Line
`define VCR   16 // V lines per Char.
また、カウンタの宣言は以下のとおりとなる。
reg    [3:0] CNT;
reg    [7:0] HCNT;  // H Counter 0-99
reg    [6:0] VCNT;  // V Counter 0-46
reg    [4:0] RCNT;  // R Counter 0-15

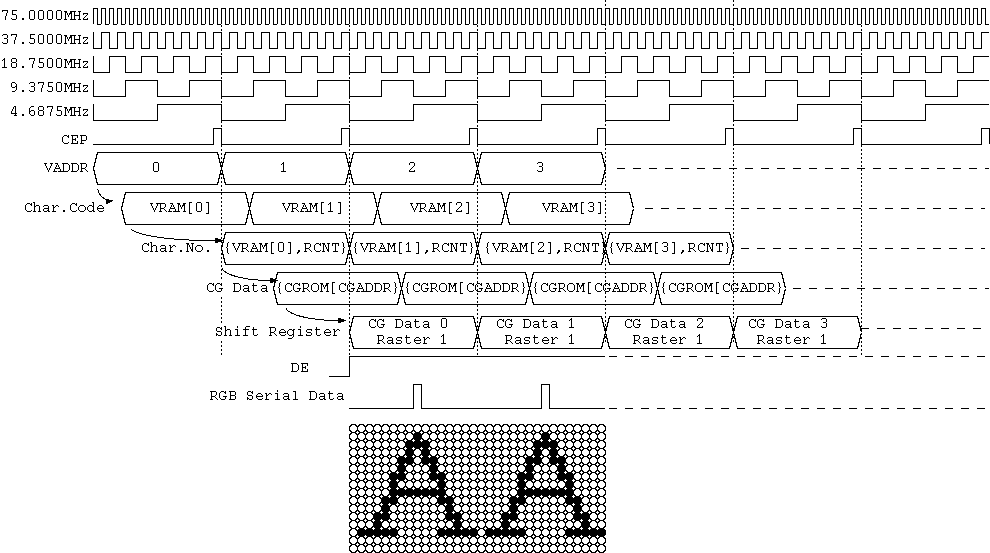

VideoRAMとChar.ROMのアクセス方法



仕様が明確になったならば、以下のコマンドによりビデオコントローラの中身を記述していきます。
これから2つのファイルに修正を加えます。
まず、ビデオモジュールの上位階層となる "vga.vhd" にビデオコントローラに必要な出力端子(R, G, B, HS, VS, DE)を追加します。
このファイルは VHDL というハードウェア記述言語で記載されています。
$ cd pcores/vga_v1_00_a/hdl/vhdl
$ gedit vga.vhd
これを以下のように変更します。 具体的には、
    R  : out  std_logic_vector(7 downto 0);
    G  : out  std_logic_vector(7 downto 0);
    B  : out  std_logic_vector(7 downto 0);
    HS : out  std_logic;
    VS : out  std_logic;
    DE : out  std_logic;
を2箇所に追加し、
      R => R,
      G => G,
      B => B,
      HS=> HS,
      VS=> VS,
      DE=> DE,
を1箇所に追加します。
変更後 変更前
------------------------------------------------------------------------------
-- vga.vhd - entity/architecture pair
------------------------------------------------------------------------------
-- IMPORTANT:
-- DO NOT MODIFY THIS FILE EXCEPT IN THE DESIGNATED SECTIONS.
--
-- SEARCH FOR --USER TO DETERMINE WHERE CHANGES ARE ALLOWED.
--
-- TYPICALLY, THE ONLY ACCEPTABLE CHANGES INVOLVE ADDING NEW
-- PORTS AND GENERICS THAT GET PASSED THROUGH TO THE INSTANTIATION
-- OF THE USER_LOGIC ENTITY.
------------------------------------------------------------------------------
--
-- ***************************************************************************
-- ** Copyright (c) 1995-2012 Xilinx, Inc.  All rights reserved.            **
-- **                                                                       **
-- ** Xilinx, Inc.                                                          **
-- ** XILINX IS PROVIDING THIS DESIGN, CODE, OR INFORMATION "AS IS"         **
-- ** AS A COURTESY TO YOU, SOLELY FOR USE IN DEVELOPING PROGRAMS AND       **
-- ** SOLUTIONS FOR XILINX DEVICES.  BY PROVIDING THIS DESIGN, CODE,        **
-- ** OR INFORMATION AS ONE POSSIBLE IMPLEMENTATION OF THIS FEATURE,        **
-- ** APPLICATION OR STANDARD, XILINX IS MAKING NO REPRESENTATION           **
-- ** THAT THIS IMPLEMENTATION IS FREE FROM ANY CLAIMS OF INFRINGEMENT,     **
-- ** AND YOU ARE RESPONSIBLE FOR OBTAINING ANY RIGHTS YOU MAY REQUIRE      **
-- ** FOR YOUR IMPLEMENTATION.  XILINX EXPRESSLY DISCLAIMS ANY              **
-- ** WARRANTY WHATSOEVER WITH RESPECT TO THE ADEQUACY OF THE               **
-- ** IMPLEMENTATION, INCLUDING BUT NOT LIMITED TO ANY WARRANTIES OR        **
-- ** REPRESENTATIONS THAT THIS IMPLEMENTATION IS FREE FROM CLAIMS OF       **
-- ** INFRINGEMENT, IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS       **
-- ** FOR A PARTICULAR PURPOSE.                                             **
-- **                                                                       **
-- ***************************************************************************
--
------------------------------------------------------------------------------
-- Filename:          vga.vhd
-- Version:           1.00.a
-- Description:       Top level design, instantiates library components and user logic.
-- Date:              Wed Sep  5 11:37:21 2012 (by Create and Import Peripheral Wizard)
-- VHDL Standard:     VHDL'93
------------------------------------------------------------------------------
-- Naming Conventions:
--   active low signals:                    "*_n"
--   clock signals:                         "clk", "clk_div#", "clk_#x"
--   reset signals:                         "rst", "rst_n"
--   generics:                              "C_*"
--   user defined types:                    "*_TYPE"
--   state machine next state:              "*_ns"
--   state machine current state:           "*_cs"
--   combinatorial signals:                 "*_com"
--   pipelined or register delay signals:   "*_d#"
--   counter signals:                       "*cnt*"
--   clock enable signals:                  "*_ce"
--   internal version of output port:       "*_i"
--   device pins:                           "*_pin"
--   ports:                                 "- Names begin with Uppercase"
--   processes:                             "*_PROCESS"
--   component instantiations:              "I_<#|FUNC>"
------------------------------------------------------------------------------

library ieee;
use ieee.std_logic_1164.all;
use ieee.std_logic_arith.all;
use ieee.std_logic_unsigned.all;

library proc_common_v3_00_a;
use proc_common_v3_00_a.proc_common_pkg.all;
use proc_common_v3_00_a.ipif_pkg.all;

library plbv46_slave_single_v1_01_a;
use plbv46_slave_single_v1_01_a.plbv46_slave_single;

------------------------------------------------------------------------------
-- Entity section
------------------------------------------------------------------------------
-- Definition of Generics:
--   C_SPLB_AWIDTH                -- PLBv46 slave: address bus width
--   C_SPLB_DWIDTH                -- PLBv46 slave: data bus width
--   C_SPLB_NUM_MASTERS           -- PLBv46 slave: Number of masters
--   C_SPLB_MID_WIDTH             -- PLBv46 slave: master ID bus width
--   C_SPLB_NATIVE_DWIDTH         -- PLBv46 slave: internal native data bus width
--   C_SPLB_P2P                   -- PLBv46 slave: point to point interconnect scheme
--   C_SPLB_SUPPORT_BURSTS        -- PLBv46 slave: support bursts
--   C_SPLB_SMALLEST_MASTER       -- PLBv46 slave: width of the smallest master
--   C_SPLB_CLK_PERIOD_PS         -- PLBv46 slave: bus clock in picoseconds
--   C_INCLUDE_DPHASE_TIMER       -- PLBv46 slave: Data Phase Timer configuration; 0 = exclude timer, 1 = include timer
--   C_FAMILY                     -- Xilinx FPGA family
--   C_MEM0_BASEADDR              -- User memory space 0 base address
--   C_MEM0_HIGHADDR              -- User memory space 0 high address
--
-- Definition of Ports:
--   SPLB_Clk                     -- PLB main bus clock
--   SPLB_Rst                     -- PLB main bus reset
--   PLB_ABus                     -- PLB address bus
--   PLB_UABus                    -- PLB upper address bus
--   PLB_PAValid                  -- PLB primary address valid indicator
--   PLB_SAValid                  -- PLB secondary address valid indicator
--   PLB_rdPrim                   -- PLB secondary to primary read request indicator
--   PLB_wrPrim                   -- PLB secondary to primary write request indicator
--   PLB_masterID                 -- PLB current master identifier
--   PLB_abort                    -- PLB abort request indicator
--   PLB_busLock                  -- PLB bus lock
--   PLB_RNW                      -- PLB read/not write
--   PLB_BE                       -- PLB byte enables
--   PLB_MSize                    -- PLB master data bus size
--   PLB_size                     -- PLB transfer size
--   PLB_type                     -- PLB transfer type
--   PLB_lockErr                  -- PLB lock error indicator
--   PLB_wrDBus                   -- PLB write data bus
--   PLB_wrBurst                  -- PLB burst write transfer indicator
--   PLB_rdBurst                  -- PLB burst read transfer indicator
--   PLB_wrPendReq                -- PLB write pending bus request indicator
--   PLB_rdPendReq                -- PLB read pending bus request indicator
--   PLB_wrPendPri                -- PLB write pending request priority
--   PLB_rdPendPri                -- PLB read pending request priority
--   PLB_reqPri                   -- PLB current request priority
--   PLB_TAttribute               -- PLB transfer attribute
--   Sl_addrAck                   -- Slave address acknowledge
--   Sl_SSize                     -- Slave data bus size
--   Sl_wait                      -- Slave wait indicator
--   Sl_rearbitrate               -- Slave re-arbitrate bus indicator
--   Sl_wrDAck                    -- Slave write data acknowledge
--   Sl_wrComp                    -- Slave write transfer complete indicator
--   Sl_wrBTerm                   -- Slave terminate write burst transfer
--   Sl_rdDBus                    -- Slave read data bus
--   Sl_rdWdAddr                  -- Slave read word address
--   Sl_rdDAck                    -- Slave read data acknowledge
--   Sl_rdComp                    -- Slave read transfer complete indicator
--   Sl_rdBTerm                   -- Slave terminate read burst transfer
--   Sl_MBusy                     -- Slave busy indicator
--   Sl_MWrErr                    -- Slave write error indicator
--   Sl_MRdErr                    -- Slave read error indicator
--   Sl_MIRQ                      -- Slave interrupt indicator
------------------------------------------------------------------------------

entity vga is
  generic
  (
    -- ADD USER GENERICS BELOW THIS LINE ---------------
    --USER generics added here
    -- ADD USER GENERICS ABOVE THIS LINE ---------------

    -- DO NOT EDIT BELOW THIS LINE ---------------------
    -- Bus protocol parameters, do not add to or delete
    C_SPLB_AWIDTH                  : integer              := 32;
    C_SPLB_DWIDTH                  : integer              := 128;
    C_SPLB_NUM_MASTERS             : integer              := 8;
    C_SPLB_MID_WIDTH               : integer              := 3;
    C_SPLB_NATIVE_DWIDTH           : integer              := 32;
    C_SPLB_P2P                     : integer              := 0;
    C_SPLB_SUPPORT_BURSTS          : integer              := 0;
    C_SPLB_SMALLEST_MASTER         : integer              := 32;
    C_SPLB_CLK_PERIOD_PS           : integer              := 10000;
    C_INCLUDE_DPHASE_TIMER         : integer              := 0;
    C_FAMILY                       : string               := "virtex6";
    C_MEM0_BASEADDR                : std_logic_vector     := X"FFFFFFFF";
    C_MEM0_HIGHADDR                : std_logic_vector     := X"00000000"
    -- DO NOT EDIT ABOVE THIS LINE ---------------------
  );
  port
  (
    -- ADD USER PORTS BELOW THIS LINE ------------------
    --USER ports added here
    R  : out  std_logic_vector(7 downto 0);
    G  : out  std_logic_vector(7 downto 0);
    B  : out  std_logic_vector(7 downto 0);
    HS : out  std_logic;
    VS : out  std_logic;
    DE : out  std_logic;
    -- ADD USER PORTS ABOVE THIS LINE ------------------

    -- DO NOT EDIT BELOW THIS LINE ---------------------
    -- Bus protocol ports, do not add to or delete
    SPLB_Clk                       : in  std_logic;
    SPLB_Rst                       : in  std_logic;
    PLB_ABus                       : in  std_logic_vector(0 to 31);
    PLB_UABus                      : in  std_logic_vector(0 to 31);
    PLB_PAValid                    : in  std_logic;
    PLB_SAValid                    : in  std_logic;
    PLB_rdPrim                     : in  std_logic;
    PLB_wrPrim                     : in  std_logic;
    PLB_masterID                   : in  std_logic_vector(0 to C_SPLB_MID_WIDTH-1);
    PLB_abort                      : in  std_logic;
    PLB_busLock                    : in  std_logic;
    PLB_RNW                        : in  std_logic;
    PLB_BE                         : in  std_logic_vector(0 to C_SPLB_DWIDTH/8-1);
    PLB_MSize                      : in  std_logic_vector(0 to 1);
    PLB_size                       : in  std_logic_vector(0 to 3);
    PLB_type                       : in  std_logic_vector(0 to 2);
    PLB_lockErr                    : in  std_logic;
    PLB_wrDBus                     : in  std_logic_vector(0 to C_SPLB_DWIDTH-1);
    PLB_wrBurst                    : in  std_logic;
    PLB_rdBurst                    : in  std_logic;
    PLB_wrPendReq                  : in  std_logic;
    PLB_rdPendReq                  : in  std_logic;
    PLB_wrPendPri                  : in  std_logic_vector(0 to 1);
    PLB_rdPendPri                  : in  std_logic_vector(0 to 1);
    PLB_reqPri                     : in  std_logic_vector(0 to 1);
    PLB_TAttribute                 : in  std_logic_vector(0 to 15);
    Sl_addrAck                     : out std_logic;
    Sl_SSize                       : out std_logic_vector(0 to 1);
    Sl_wait                        : out std_logic;
    Sl_rearbitrate                 : out std_logic;
    Sl_wrDAck                      : out std_logic;
    Sl_wrComp                      : out std_logic;
    Sl_wrBTerm                     : out std_logic;
    Sl_rdDBus                      : out std_logic_vector(0 to C_SPLB_DWIDTH-1);
    Sl_rdWdAddr                    : out std_logic_vector(0 to 3);
    Sl_rdDAck                      : out std_logic;
    Sl_rdComp                      : out std_logic;
    Sl_rdBTerm                     : out std_logic;
    Sl_MBusy                       : out std_logic_vector(0 to C_SPLB_NUM_MASTERS-1);
    Sl_MWrErr                      : out std_logic_vector(0 to C_SPLB_NUM_MASTERS-1);
    Sl_MRdErr                      : out std_logic_vector(0 to C_SPLB_NUM_MASTERS-1);
    Sl_MIRQ                        : out std_logic_vector(0 to C_SPLB_NUM_MASTERS-1)
    -- DO NOT EDIT ABOVE THIS LINE ---------------------
  );

  attribute MAX_FANOUT : string;
  attribute SIGIS : string;

  attribute SIGIS of SPLB_Clk      : signal is "CLK";
  attribute SIGIS of SPLB_Rst      : signal is "RST";

end entity vga;

------------------------------------------------------------------------------
-- Architecture section
------------------------------------------------------------------------------

architecture IMP of vga is

  ------------------------------------------
  -- Array of base/high address pairs for each address range
  ------------------------------------------
  constant ZERO_ADDR_PAD                  : std_logic_vector(0 to 31) := (others => '0');

  constant IPIF_ARD_ADDR_RANGE_ARRAY      : SLV64_ARRAY_TYPE     :=
    (
      ZERO_ADDR_PAD & C_MEM0_BASEADDR,    -- user logic memory space 0 base address
      ZERO_ADDR_PAD & C_MEM0_HIGHADDR     -- user logic memory space 0 high address
    );

  ------------------------------------------
  -- Array of desired number of chip enables for each address range
  ------------------------------------------
  constant USER_NUM_MEM                   : integer              := 1;

  constant IPIF_ARD_NUM_CE_ARRAY          : INTEGER_ARRAY_TYPE   :=
    (
      0  => 1                             -- number of ce for user logic memory space 0 (always 1 chip enable)
    );

  ------------------------------------------
  -- Ratio of bus clock to core clock (for use in dual clock systems)
  -- 1 = ratio is 1:1
  -- 2 = ratio is 2:1
  ------------------------------------------
  constant IPIF_BUS2CORE_CLK_RATIO        : integer              := 1;

  ------------------------------------------
  -- Width of the slave data bus (32 only)
  ------------------------------------------
  constant USER_SLV_DWIDTH                : integer              := C_SPLB_NATIVE_DWIDTH;

  constant IPIF_SLV_DWIDTH                : integer              := C_SPLB_NATIVE_DWIDTH;

  ------------------------------------------
  -- Width of the slave address bus (32 only)
  ------------------------------------------
  constant USER_SLV_AWIDTH                : integer              := C_SPLB_AWIDTH;

  ------------------------------------------
  -- Index for CS/CE
  ------------------------------------------
  constant USER_MEM0_CS_INDEX             : integer              := 0;

  constant USER_CS_INDEX                  : integer              := USER_MEM0_CS_INDEX;

  ------------------------------------------
  -- IP Interconnect (IPIC) signal declarations
  ------------------------------------------
  signal ipif_Bus2IP_Clk                : std_logic;
  signal ipif_Bus2IP_Reset              : std_logic;
  signal ipif_IP2Bus_Data               : std_logic_vector(0 to IPIF_SLV_DWIDTH-1);
  signal ipif_IP2Bus_WrAck              : std_logic;
  signal ipif_IP2Bus_RdAck              : std_logic;
  signal ipif_IP2Bus_Error              : std_logic;
  signal ipif_Bus2IP_Addr               : std_logic_vector(0 to C_SPLB_AWIDTH-1);
  signal ipif_Bus2IP_Data               : std_logic_vector(0 to IPIF_SLV_DWIDTH-1);
  signal ipif_Bus2IP_RNW                : std_logic;
  signal ipif_Bus2IP_BE                 : std_logic_vector(0 to IPIF_SLV_DWIDTH/8-1);
  signal ipif_Bus2IP_CS                 : std_logic_vector(0 to ((IPIF_ARD_ADDR_RANGE_ARRAY'length)/2)-1);
  signal ipif_Bus2IP_RdCE               : std_logic_vector(0 to calc_num_ce(IPIF_ARD_NUM_CE_ARRAY)-1);
  signal ipif_Bus2IP_WrCE               : std_logic_vector(0 to calc_num_ce(IPIF_ARD_NUM_CE_ARRAY)-1);
  signal user_IP2Bus_Data               : std_logic_vector(0 to USER_SLV_DWIDTH-1);
  signal user_IP2Bus_RdAck              : std_logic;
  signal user_IP2Bus_WrAck              : std_logic;
  signal user_IP2Bus_Error              : std_logic;

  ------------------------------------------
  -- Component declaration for verilog user logic
  ------------------------------------------
  component user_logic is
    generic
    (
      -- ADD USER GENERICS BELOW THIS LINE ---------------
      --USER generics added here
      -- ADD USER GENERICS ABOVE THIS LINE ---------------

      -- DO NOT EDIT BELOW THIS LINE ---------------------
      -- Bus protocol parameters, do not add to or delete
      C_SLV_AWIDTH                   : integer              := 32;
      C_SLV_DWIDTH                   : integer              := 32;
      C_NUM_MEM                      : integer              := 1
      -- DO NOT EDIT ABOVE THIS LINE ---------------------
    );
    port
    (
      -- ADD USER PORTS BELOW THIS LINE ------------------
      --USER ports added here
      R  : out  std_logic_vector(7 downto 0);
      G  : out  std_logic_vector(7 downto 0);
      B  : out  std_logic_vector(7 downto 0);
      HS : out  std_logic;
      VS : out  std_logic;
      DE : out  std_logic;
      -- ADD USER PORTS ABOVE THIS LINE ------------------

      -- DO NOT EDIT BELOW THIS LINE ---------------------
      -- Bus protocol ports, do not add to or delete
      Bus2IP_Clk                     : in  std_logic;
      Bus2IP_Reset                   : in  std_logic;
      Bus2IP_Addr                    : in  std_logic_vector(0 to C_SLV_AWIDTH-1);
      Bus2IP_CS                      : in  std_logic_vector(0 to C_NUM_MEM-1);
      Bus2IP_RNW                     : in  std_logic;
      Bus2IP_Data                    : in  std_logic_vector(0 to C_SLV_DWIDTH-1);
      Bus2IP_BE                      : in  std_logic_vector(0 to C_SLV_DWIDTH/8-1);
      IP2Bus_Data                    : out std_logic_vector(0 to C_SLV_DWIDTH-1);
      IP2Bus_RdAck                   : out std_logic;
      IP2Bus_WrAck                   : out std_logic;
      IP2Bus_Error                   : out std_logic
      -- DO NOT EDIT ABOVE THIS LINE ---------------------
    );
  end component user_logic;

begin

  ------------------------------------------
  -- instantiate plbv46_slave_single
  ------------------------------------------
  PLBV46_SLAVE_SINGLE_I : entity plbv46_slave_single_v1_01_a.plbv46_slave_single
    generic map
    (
      C_ARD_ADDR_RANGE_ARRAY         => IPIF_ARD_ADDR_RANGE_ARRAY,
      C_ARD_NUM_CE_ARRAY             => IPIF_ARD_NUM_CE_ARRAY,
      C_SPLB_P2P                     => C_SPLB_P2P,
      C_BUS2CORE_CLK_RATIO           => IPIF_BUS2CORE_CLK_RATIO,
      C_SPLB_MID_WIDTH               => C_SPLB_MID_WIDTH,
      C_SPLB_NUM_MASTERS             => C_SPLB_NUM_MASTERS,
      C_SPLB_AWIDTH                  => C_SPLB_AWIDTH,
      C_SPLB_DWIDTH                  => C_SPLB_DWIDTH,
      C_SIPIF_DWIDTH                 => IPIF_SLV_DWIDTH,
      C_INCLUDE_DPHASE_TIMER         => C_INCLUDE_DPHASE_TIMER,
      C_FAMILY                       => C_FAMILY
    )
    port map
    (
      SPLB_Clk                       => SPLB_Clk,
      SPLB_Rst                       => SPLB_Rst,
      PLB_ABus                       => PLB_ABus,
      PLB_UABus                      => PLB_UABus,
      PLB_PAValid                    => PLB_PAValid,
      PLB_SAValid                    => PLB_SAValid,
      PLB_rdPrim                     => PLB_rdPrim,
      PLB_wrPrim                     => PLB_wrPrim,
      PLB_masterID                   => PLB_masterID,
      PLB_abort                      => PLB_abort,
      PLB_busLock                    => PLB_busLock,
      PLB_RNW                        => PLB_RNW,
      PLB_BE                         => PLB_BE,
      PLB_MSize                      => PLB_MSize,
      PLB_size                       => PLB_size,
      PLB_type                       => PLB_type,
      PLB_lockErr                    => PLB_lockErr,
      PLB_wrDBus                     => PLB_wrDBus,
      PLB_wrBurst                    => PLB_wrBurst,
      PLB_rdBurst                    => PLB_rdBurst,
      PLB_wrPendReq                  => PLB_wrPendReq,
      PLB_rdPendReq                  => PLB_rdPendReq,
      PLB_wrPendPri                  => PLB_wrPendPri,
      PLB_rdPendPri                  => PLB_rdPendPri,
      PLB_reqPri                     => PLB_reqPri,
      PLB_TAttribute                 => PLB_TAttribute,
      Sl_addrAck                     => Sl_addrAck,
      Sl_SSize                       => Sl_SSize,
      Sl_wait                        => Sl_wait,
      Sl_rearbitrate                 => Sl_rearbitrate,
      Sl_wrDAck                      => Sl_wrDAck,
      Sl_wrComp                      => Sl_wrComp,
      Sl_wrBTerm                     => Sl_wrBTerm,
      Sl_rdDBus                      => Sl_rdDBus,
      Sl_rdWdAddr                    => Sl_rdWdAddr,
      Sl_rdDAck                      => Sl_rdDAck,
      Sl_rdComp                      => Sl_rdComp,
      Sl_rdBTerm                     => Sl_rdBTerm,
      Sl_MBusy                       => Sl_MBusy,
      Sl_MWrErr                      => Sl_MWrErr,
      Sl_MRdErr                      => Sl_MRdErr,
      Sl_MIRQ                        => Sl_MIRQ,
      Bus2IP_Clk                     => ipif_Bus2IP_Clk,
      Bus2IP_Reset                   => ipif_Bus2IP_Reset,
      IP2Bus_Data                    => ipif_IP2Bus_Data,
      IP2Bus_WrAck                   => ipif_IP2Bus_WrAck,
      IP2Bus_RdAck                   => ipif_IP2Bus_RdAck,
      IP2Bus_Error                   => ipif_IP2Bus_Error,
      Bus2IP_Addr                    => ipif_Bus2IP_Addr,
      Bus2IP_Data                    => ipif_Bus2IP_Data,
      Bus2IP_RNW                     => ipif_Bus2IP_RNW,
      Bus2IP_BE                      => ipif_Bus2IP_BE,
      Bus2IP_CS                      => ipif_Bus2IP_CS,
      Bus2IP_RdCE                    => ipif_Bus2IP_RdCE,
      Bus2IP_WrCE                    => ipif_Bus2IP_WrCE
    );

  ------------------------------------------
  -- instantiate User Logic
  ------------------------------------------
  USER_LOGIC_I : component user_logic
    generic map
    (
      -- MAP USER GENERICS BELOW THIS LINE ---------------
      --USER generics mapped here
      -- MAP USER GENERICS ABOVE THIS LINE ---------------

      C_SLV_AWIDTH                   => USER_SLV_AWIDTH,
      C_SLV_DWIDTH                   => USER_SLV_DWIDTH,
      C_NUM_MEM                      => USER_NUM_MEM
    )
    port map
    (
      -- MAP USER PORTS BELOW THIS LINE ------------------
      --USER ports mapped here
      R => R,
      G => G,
      B => B,
      HS=> HS,
      VS=> VS,
      DE=> DE,
      -- MAP USER PORTS ABOVE THIS LINE ------------------

      Bus2IP_Clk                     => ipif_Bus2IP_Clk,
      Bus2IP_Reset                   => ipif_Bus2IP_Reset,
      Bus2IP_Addr                    => ipif_Bus2IP_Addr,
      Bus2IP_CS                      => ipif_Bus2IP_CS(USER_CS_INDEX to USER_CS_INDEX+USER_NUM_MEM-1),
      Bus2IP_RNW                     => ipif_Bus2IP_RNW,
      Bus2IP_Data                    => ipif_Bus2IP_Data,
      Bus2IP_BE                      => ipif_Bus2IP_BE,
      IP2Bus_Data                    => user_IP2Bus_Data,
      IP2Bus_RdAck                   => user_IP2Bus_RdAck,
      IP2Bus_WrAck                   => user_IP2Bus_WrAck,
      IP2Bus_Error                   => user_IP2Bus_Error
    );

  ------------------------------------------
  -- connect internal signals
  ------------------------------------------
  ipif_IP2Bus_Data <= user_IP2Bus_Data;
  ipif_IP2Bus_WrAck <= user_IP2Bus_WrAck;
  ipif_IP2Bus_RdAck <= user_IP2Bus_RdAck;
  ipif_IP2Bus_Error <= user_IP2Bus_Error;

end IMP;

------------------------------------------------------------------------------
-- vga.vhd - entity/architecture pair
------------------------------------------------------------------------------
-- IMPORTANT:
-- DO NOT MODIFY THIS FILE EXCEPT IN THE DESIGNATED SECTIONS.
--
-- SEARCH FOR --USER TO DETERMINE WHERE CHANGES ARE ALLOWED.
--
-- TYPICALLY, THE ONLY ACCEPTABLE CHANGES INVOLVE ADDING NEW
-- PORTS AND GENERICS THAT GET PASSED THROUGH TO THE INSTANTIATION
-- OF THE USER_LOGIC ENTITY.
------------------------------------------------------------------------------
--
-- ***************************************************************************
-- ** Copyright (c) 1995-2012 Xilinx, Inc.  All rights reserved.            **
-- **                                                                       **
-- ** Xilinx, Inc.                                                          **
-- ** XILINX IS PROVIDING THIS DESIGN, CODE, OR INFORMATION "AS IS"         **
-- ** AS A COURTESY TO YOU, SOLELY FOR USE IN DEVELOPING PROGRAMS AND       **
-- ** SOLUTIONS FOR XILINX DEVICES.  BY PROVIDING THIS DESIGN, CODE,        **
-- ** OR INFORMATION AS ONE POSSIBLE IMPLEMENTATION OF THIS FEATURE,        **
-- ** APPLICATION OR STANDARD, XILINX IS MAKING NO REPRESENTATION           **
-- ** THAT THIS IMPLEMENTATION IS FREE FROM ANY CLAIMS OF INFRINGEMENT,     **
-- ** AND YOU ARE RESPONSIBLE FOR OBTAINING ANY RIGHTS YOU MAY REQUIRE      **
-- ** FOR YOUR IMPLEMENTATION.  XILINX EXPRESSLY DISCLAIMS ANY              **
-- ** WARRANTY WHATSOEVER WITH RESPECT TO THE ADEQUACY OF THE               **
-- ** IMPLEMENTATION, INCLUDING BUT NOT LIMITED TO ANY WARRANTIES OR        **
-- ** REPRESENTATIONS THAT THIS IMPLEMENTATION IS FREE FROM CLAIMS OF       **
-- ** INFRINGEMENT, IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS       **
-- ** FOR A PARTICULAR PURPOSE.                                             **
-- **                                                                       **
-- ***************************************************************************
--
------------------------------------------------------------------------------
-- Filename:          vga.vhd
-- Version:           1.00.a
-- Description:       Top level design, instantiates library components and user logic.
-- Date:              Wed Sep  5 11:37:21 2012 (by Create and Import Peripheral Wizard)
-- VHDL Standard:     VHDL'93
------------------------------------------------------------------------------
-- Naming Conventions:
--   active low signals:                    "*_n"
--   clock signals:                         "clk", "clk_div#", "clk_#x"
--   reset signals:                         "rst", "rst_n"
--   generics:                              "C_*"
--   user defined types:                    "*_TYPE"
--   state machine next state:              "*_ns"
--   state machine current state:           "*_cs"
--   combinatorial signals:                 "*_com"
--   pipelined or register delay signals:   "*_d#"
--   counter signals:                       "*cnt*"
--   clock enable signals:                  "*_ce"
--   internal version of output port:       "*_i"
--   device pins:                           "*_pin"
--   ports:                                 "- Names begin with Uppercase"
--   processes:                             "*_PROCESS"
--   component instantiations:              "I_<#|FUNC>"
------------------------------------------------------------------------------

library ieee;
use ieee.std_logic_1164.all;
use ieee.std_logic_arith.all;
use ieee.std_logic_unsigned.all;

library proc_common_v3_00_a;
use proc_common_v3_00_a.proc_common_pkg.all;
use proc_common_v3_00_a.ipif_pkg.all;

library plbv46_slave_single_v1_01_a;
use plbv46_slave_single_v1_01_a.plbv46_slave_single;

------------------------------------------------------------------------------
-- Entity section
------------------------------------------------------------------------------
-- Definition of Generics:
--   C_SPLB_AWIDTH                -- PLBv46 slave: address bus width
--   C_SPLB_DWIDTH                -- PLBv46 slave: data bus width
--   C_SPLB_NUM_MASTERS           -- PLBv46 slave: Number of masters
--   C_SPLB_MID_WIDTH             -- PLBv46 slave: master ID bus width
--   C_SPLB_NATIVE_DWIDTH         -- PLBv46 slave: internal native data bus width
--   C_SPLB_P2P                   -- PLBv46 slave: point to point interconnect scheme
--   C_SPLB_SUPPORT_BURSTS        -- PLBv46 slave: support bursts
--   C_SPLB_SMALLEST_MASTER       -- PLBv46 slave: width of the smallest master
--   C_SPLB_CLK_PERIOD_PS         -- PLBv46 slave: bus clock in picoseconds
--   C_INCLUDE_DPHASE_TIMER       -- PLBv46 slave: Data Phase Timer configuration; 0 = exclude timer, 1 = include timer
--   C_FAMILY                     -- Xilinx FPGA family
--   C_MEM0_BASEADDR              -- User memory space 0 base address
--   C_MEM0_HIGHADDR              -- User memory space 0 high address
--
-- Definition of Ports:
--   SPLB_Clk                     -- PLB main bus clock
--   SPLB_Rst                     -- PLB main bus reset
--   PLB_ABus                     -- PLB address bus
--   PLB_UABus                    -- PLB upper address bus
--   PLB_PAValid                  -- PLB primary address valid indicator
--   PLB_SAValid                  -- PLB secondary address valid indicator
--   PLB_rdPrim                   -- PLB secondary to primary read request indicator
--   PLB_wrPrim                   -- PLB secondary to primary write request indicator
--   PLB_masterID                 -- PLB current master identifier
--   PLB_abort                    -- PLB abort request indicator
--   PLB_busLock                  -- PLB bus lock
--   PLB_RNW                      -- PLB read/not write
--   PLB_BE                       -- PLB byte enables
--   PLB_MSize                    -- PLB master data bus size
--   PLB_size                     -- PLB transfer size
--   PLB_type                     -- PLB transfer type
--   PLB_lockErr                  -- PLB lock error indicator
--   PLB_wrDBus                   -- PLB write data bus
--   PLB_wrBurst                  -- PLB burst write transfer indicator
--   PLB_rdBurst                  -- PLB burst read transfer indicator
--   PLB_wrPendReq                -- PLB write pending bus request indicator
--   PLB_rdPendReq                -- PLB read pending bus request indicator
--   PLB_wrPendPri                -- PLB write pending request priority
--   PLB_rdPendPri                -- PLB read pending request priority
--   PLB_reqPri                   -- PLB current request priority
--   PLB_TAttribute               -- PLB transfer attribute
--   Sl_addrAck                   -- Slave address acknowledge
--   Sl_SSize                     -- Slave data bus size
--   Sl_wait                      -- Slave wait indicator
--   Sl_rearbitrate               -- Slave re-arbitrate bus indicator
--   Sl_wrDAck                    -- Slave write data acknowledge
--   Sl_wrComp                    -- Slave write transfer complete indicator
--   Sl_wrBTerm                   -- Slave terminate write burst transfer
--   Sl_rdDBus                    -- Slave read data bus
--   Sl_rdWdAddr                  -- Slave read word address
--   Sl_rdDAck                    -- Slave read data acknowledge
--   Sl_rdComp                    -- Slave read transfer complete indicator
--   Sl_rdBTerm                   -- Slave terminate read burst transfer
--   Sl_MBusy                     -- Slave busy indicator
--   Sl_MWrErr                    -- Slave write error indicator
--   Sl_MRdErr                    -- Slave read error indicator
--   Sl_MIRQ                      -- Slave interrupt indicator
------------------------------------------------------------------------------

entity vga is
  generic
  (
    -- ADD USER GENERICS BELOW THIS LINE ---------------
    --USER generics added here
    -- ADD USER GENERICS ABOVE THIS LINE ---------------

    -- DO NOT EDIT BELOW THIS LINE ---------------------
    -- Bus protocol parameters, do not add to or delete
    C_SPLB_AWIDTH                  : integer              := 32;
    C_SPLB_DWIDTH                  : integer              := 128;
    C_SPLB_NUM_MASTERS             : integer              := 8;
    C_SPLB_MID_WIDTH               : integer              := 3;
    C_SPLB_NATIVE_DWIDTH           : integer              := 32;
    C_SPLB_P2P                     : integer              := 0;
    C_SPLB_SUPPORT_BURSTS          : integer              := 0;
    C_SPLB_SMALLEST_MASTER         : integer              := 32;
    C_SPLB_CLK_PERIOD_PS           : integer              := 10000;
    C_INCLUDE_DPHASE_TIMER         : integer              := 0;
    C_FAMILY                       : string               := "virtex6";
    C_MEM0_BASEADDR                : std_logic_vector     := X"FFFFFFFF";
    C_MEM0_HIGHADDR                : std_logic_vector     := X"00000000"
    -- DO NOT EDIT ABOVE THIS LINE ---------------------
  );
  port
  (
    -- ADD USER PORTS BELOW THIS LINE ------------------
    --USER ports added here






    -- ADD USER PORTS ABOVE THIS LINE ------------------

    -- DO NOT EDIT BELOW THIS LINE ---------------------
    -- Bus protocol ports, do not add to or delete
    SPLB_Clk                       : in  std_logic;
    SPLB_Rst                       : in  std_logic;
    PLB_ABus                       : in  std_logic_vector(0 to 31);
    PLB_UABus                      : in  std_logic_vector(0 to 31);
    PLB_PAValid                    : in  std_logic;
    PLB_SAValid                    : in  std_logic;
    PLB_rdPrim                     : in  std_logic;
    PLB_wrPrim                     : in  std_logic;
    PLB_masterID                   : in  std_logic_vector(0 to C_SPLB_MID_WIDTH-1);
    PLB_abort                      : in  std_logic;
    PLB_busLock                    : in  std_logic;
    PLB_RNW                        : in  std_logic;
    PLB_BE                         : in  std_logic_vector(0 to C_SPLB_DWIDTH/8-1);
    PLB_MSize                      : in  std_logic_vector(0 to 1);
    PLB_size                       : in  std_logic_vector(0 to 3);
    PLB_type                       : in  std_logic_vector(0 to 2);
    PLB_lockErr                    : in  std_logic;
    PLB_wrDBus                     : in  std_logic_vector(0 to C_SPLB_DWIDTH-1);
    PLB_wrBurst                    : in  std_logic;
    PLB_rdBurst                    : in  std_logic;
    PLB_wrPendReq                  : in  std_logic;
    PLB_rdPendReq                  : in  std_logic;
    PLB_wrPendPri                  : in  std_logic_vector(0 to 1);
    PLB_rdPendPri                  : in  std_logic_vector(0 to 1);
    PLB_reqPri                     : in  std_logic_vector(0 to 1);
    PLB_TAttribute                 : in  std_logic_vector(0 to 15);
    Sl_addrAck                     : out std_logic;
    Sl_SSize                       : out std_logic_vector(0 to 1);
    Sl_wait                        : out std_logic;
    Sl_rearbitrate                 : out std_logic;
    Sl_wrDAck                      : out std_logic;
    Sl_wrComp                      : out std_logic;
    Sl_wrBTerm                     : out std_logic;
    Sl_rdDBus                      : out std_logic_vector(0 to C_SPLB_DWIDTH-1);
    Sl_rdWdAddr                    : out std_logic_vector(0 to 3);
    Sl_rdDAck                      : out std_logic;
    Sl_rdComp                      : out std_logic;
    Sl_rdBTerm                     : out std_logic;
    Sl_MBusy                       : out std_logic_vector(0 to C_SPLB_NUM_MASTERS-1);
    Sl_MWrErr                      : out std_logic_vector(0 to C_SPLB_NUM_MASTERS-1);
    Sl_MRdErr                      : out std_logic_vector(0 to C_SPLB_NUM_MASTERS-1);
    Sl_MIRQ                        : out std_logic_vector(0 to C_SPLB_NUM_MASTERS-1)
    -- DO NOT EDIT ABOVE THIS LINE ---------------------
  );

  attribute MAX_FANOUT : string;
  attribute SIGIS : string;

  attribute SIGIS of SPLB_Clk      : signal is "CLK";
  attribute SIGIS of SPLB_Rst      : signal is "RST";

end entity vga;

------------------------------------------------------------------------------
-- Architecture section
------------------------------------------------------------------------------

architecture IMP of vga is

  ------------------------------------------
  -- Array of base/high address pairs for each address range
  ------------------------------------------
  constant ZERO_ADDR_PAD                  : std_logic_vector(0 to 31) := (others => '0');

  constant IPIF_ARD_ADDR_RANGE_ARRAY      : SLV64_ARRAY_TYPE     :=
    (
      ZERO_ADDR_PAD & C_MEM0_BASEADDR,    -- user logic memory space 0 base address
      ZERO_ADDR_PAD & C_MEM0_HIGHADDR     -- user logic memory space 0 high address
    );

  ------------------------------------------
  -- Array of desired number of chip enables for each address range
  ------------------------------------------
  constant USER_NUM_MEM                   : integer              := 1;

  constant IPIF_ARD_NUM_CE_ARRAY          : INTEGER_ARRAY_TYPE   :=
    (
      0  => 1                             -- number of ce for user logic memory space 0 (always 1 chip enable)
    );

  ------------------------------------------
  -- Ratio of bus clock to core clock (for use in dual clock systems)
  -- 1 = ratio is 1:1
  -- 2 = ratio is 2:1
  ------------------------------------------
  constant IPIF_BUS2CORE_CLK_RATIO        : integer              := 1;

  ------------------------------------------
  -- Width of the slave data bus (32 only)
  ------------------------------------------
  constant USER_SLV_DWIDTH                : integer              := C_SPLB_NATIVE_DWIDTH;

  constant IPIF_SLV_DWIDTH                : integer              := C_SPLB_NATIVE_DWIDTH;

  ------------------------------------------
  -- Width of the slave address bus (32 only)
  ------------------------------------------
  constant USER_SLV_AWIDTH                : integer              := C_SPLB_AWIDTH;

  ------------------------------------------
  -- Index for CS/CE
  ------------------------------------------
  constant USER_MEM0_CS_INDEX             : integer              := 0;

  constant USER_CS_INDEX                  : integer              := USER_MEM0_CS_INDEX;

  ------------------------------------------
  -- IP Interconnect (IPIC) signal declarations
  ------------------------------------------
  signal ipif_Bus2IP_Clk                : std_logic;
  signal ipif_Bus2IP_Reset              : std_logic;
  signal ipif_IP2Bus_Data               : std_logic_vector(0 to IPIF_SLV_DWIDTH-1);
  signal ipif_IP2Bus_WrAck              : std_logic;
  signal ipif_IP2Bus_RdAck              : std_logic;
  signal ipif_IP2Bus_Error              : std_logic;
  signal ipif_Bus2IP_Addr               : std_logic_vector(0 to C_SPLB_AWIDTH-1);
  signal ipif_Bus2IP_Data               : std_logic_vector(0 to IPIF_SLV_DWIDTH-1);
  signal ipif_Bus2IP_RNW                : std_logic;
  signal ipif_Bus2IP_BE                 : std_logic_vector(0 to IPIF_SLV_DWIDTH/8-1);
  signal ipif_Bus2IP_CS                 : std_logic_vector(0 to ((IPIF_ARD_ADDR_RANGE_ARRAY'length)/2)-1);
  signal ipif_Bus2IP_RdCE               : std_logic_vector(0 to calc_num_ce(IPIF_ARD_NUM_CE_ARRAY)-1);
  signal ipif_Bus2IP_WrCE               : std_logic_vector(0 to calc_num_ce(IPIF_ARD_NUM_CE_ARRAY)-1);
  signal user_IP2Bus_Data               : std_logic_vector(0 to USER_SLV_DWIDTH-1);
  signal user_IP2Bus_RdAck              : std_logic;
  signal user_IP2Bus_WrAck              : std_logic;
  signal user_IP2Bus_Error              : std_logic;

  ------------------------------------------
  -- Component declaration for verilog user logic
  ------------------------------------------
  component user_logic is
    generic
    (
      -- ADD USER GENERICS BELOW THIS LINE ---------------
      --USER generics added here
      -- ADD USER GENERICS ABOVE THIS LINE ---------------

      -- DO NOT EDIT BELOW THIS LINE ---------------------
      -- Bus protocol parameters, do not add to or delete
      C_SLV_AWIDTH                   : integer              := 32;
      C_SLV_DWIDTH                   : integer              := 32;
      C_NUM_MEM                      : integer              := 1
      -- DO NOT EDIT ABOVE THIS LINE ---------------------
    );
    port
    (
      -- ADD USER PORTS BELOW THIS LINE ------------------
      --USER ports added here






      -- ADD USER PORTS ABOVE THIS LINE ------------------

      -- DO NOT EDIT BELOW THIS LINE ---------------------
      -- Bus protocol ports, do not add to or delete
      Bus2IP_Clk                     : in  std_logic;
      Bus2IP_Reset                   : in  std_logic;
      Bus2IP_Addr                    : in  std_logic_vector(0 to C_SLV_AWIDTH-1);
      Bus2IP_CS                      : in  std_logic_vector(0 to C_NUM_MEM-1);
      Bus2IP_RNW                     : in  std_logic;
      Bus2IP_Data                    : in  std_logic_vector(0 to C_SLV_DWIDTH-1);
      Bus2IP_BE                      : in  std_logic_vector(0 to C_SLV_DWIDTH/8-1);
      IP2Bus_Data                    : out std_logic_vector(0 to C_SLV_DWIDTH-1);
      IP2Bus_RdAck                   : out std_logic;
      IP2Bus_WrAck                   : out std_logic;
      IP2Bus_Error                   : out std_logic
      -- DO NOT EDIT ABOVE THIS LINE ---------------------
    );
  end component user_logic;

begin

  ------------------------------------------
  -- instantiate plbv46_slave_single
  ------------------------------------------
  PLBV46_SLAVE_SINGLE_I : entity plbv46_slave_single_v1_01_a.plbv46_slave_single
    generic map
    (
      C_ARD_ADDR_RANGE_ARRAY         => IPIF_ARD_ADDR_RANGE_ARRAY,
      C_ARD_NUM_CE_ARRAY             => IPIF_ARD_NUM_CE_ARRAY,
      C_SPLB_P2P                     => C_SPLB_P2P,
      C_BUS2CORE_CLK_RATIO           => IPIF_BUS2CORE_CLK_RATIO,
      C_SPLB_MID_WIDTH               => C_SPLB_MID_WIDTH,
      C_SPLB_NUM_MASTERS             => C_SPLB_NUM_MASTERS,
      C_SPLB_AWIDTH                  => C_SPLB_AWIDTH,
      C_SPLB_DWIDTH                  => C_SPLB_DWIDTH,
      C_SIPIF_DWIDTH                 => IPIF_SLV_DWIDTH,
      C_INCLUDE_DPHASE_TIMER         => C_INCLUDE_DPHASE_TIMER,
      C_FAMILY                       => C_FAMILY
    )
    port map
    (
      SPLB_Clk                       => SPLB_Clk,
      SPLB_Rst                       => SPLB_Rst,
      PLB_ABus                       => PLB_ABus,
      PLB_UABus                      => PLB_UABus,
      PLB_PAValid                    => PLB_PAValid,
      PLB_SAValid                    => PLB_SAValid,
      PLB_rdPrim                     => PLB_rdPrim,
      PLB_wrPrim                     => PLB_wrPrim,
      PLB_masterID                   => PLB_masterID,
      PLB_abort                      => PLB_abort,
      PLB_busLock                    => PLB_busLock,
      PLB_RNW                        => PLB_RNW,
      PLB_BE                         => PLB_BE,
      PLB_MSize                      => PLB_MSize,
      PLB_size                       => PLB_size,
      PLB_type                       => PLB_type,
      PLB_lockErr                    => PLB_lockErr,
      PLB_wrDBus                     => PLB_wrDBus,
      PLB_wrBurst                    => PLB_wrBurst,
      PLB_rdBurst                    => PLB_rdBurst,
      PLB_wrPendReq                  => PLB_wrPendReq,
      PLB_rdPendReq                  => PLB_rdPendReq,
      PLB_wrPendPri                  => PLB_wrPendPri,
      PLB_rdPendPri                  => PLB_rdPendPri,
      PLB_reqPri                     => PLB_reqPri,
      PLB_TAttribute                 => PLB_TAttribute,
      Sl_addrAck                     => Sl_addrAck,
      Sl_SSize                       => Sl_SSize,
      Sl_wait                        => Sl_wait,
      Sl_rearbitrate                 => Sl_rearbitrate,
      Sl_wrDAck                      => Sl_wrDAck,
      Sl_wrComp                      => Sl_wrComp,
      Sl_wrBTerm                     => Sl_wrBTerm,
      Sl_rdDBus                      => Sl_rdDBus,
      Sl_rdWdAddr                    => Sl_rdWdAddr,
      Sl_rdDAck                      => Sl_rdDAck,
      Sl_rdComp                      => Sl_rdComp,
      Sl_rdBTerm                     => Sl_rdBTerm,
      Sl_MBusy                       => Sl_MBusy,
      Sl_MWrErr                      => Sl_MWrErr,
      Sl_MRdErr                      => Sl_MRdErr,
      Sl_MIRQ                        => Sl_MIRQ,
      Bus2IP_Clk                     => ipif_Bus2IP_Clk,
      Bus2IP_Reset                   => ipif_Bus2IP_Reset,
      IP2Bus_Data                    => ipif_IP2Bus_Data,
      IP2Bus_WrAck                   => ipif_IP2Bus_WrAck,
      IP2Bus_RdAck                   => ipif_IP2Bus_RdAck,
      IP2Bus_Error                   => ipif_IP2Bus_Error,
      Bus2IP_Addr                    => ipif_Bus2IP_Addr,
      Bus2IP_Data                    => ipif_Bus2IP_Data,
      Bus2IP_RNW                     => ipif_Bus2IP_RNW,
      Bus2IP_BE                      => ipif_Bus2IP_BE,
      Bus2IP_CS                      => ipif_Bus2IP_CS,
      Bus2IP_RdCE                    => ipif_Bus2IP_RdCE,
      Bus2IP_WrCE                    => ipif_Bus2IP_WrCE
    );

  ------------------------------------------
  -- instantiate User Logic
  ------------------------------------------
  USER_LOGIC_I : component user_logic
    generic map
    (
      -- MAP USER GENERICS BELOW THIS LINE ---------------
      --USER generics mapped here
      -- MAP USER GENERICS ABOVE THIS LINE ---------------

      C_SLV_AWIDTH                   => USER_SLV_AWIDTH,
      C_SLV_DWIDTH                   => USER_SLV_DWIDTH,
      C_NUM_MEM                      => USER_NUM_MEM
    )
    port map
    (
      -- MAP USER PORTS BELOW THIS LINE ------------------
      --USER ports mapped here






      -- MAP USER PORTS ABOVE THIS LINE ------------------

      Bus2IP_Clk                     => ipif_Bus2IP_Clk,
      Bus2IP_Reset                   => ipif_Bus2IP_Reset,
      Bus2IP_Addr                    => ipif_Bus2IP_Addr,
      Bus2IP_CS                      => ipif_Bus2IP_CS(USER_CS_INDEX to USER_CS_INDEX+USER_NUM_MEM-1),
      Bus2IP_RNW                     => ipif_Bus2IP_RNW,
      Bus2IP_Data                    => ipif_Bus2IP_Data,
      Bus2IP_BE                      => ipif_Bus2IP_BE,
      IP2Bus_Data                    => user_IP2Bus_Data,
      IP2Bus_RdAck                   => user_IP2Bus_RdAck,
      IP2Bus_WrAck                   => user_IP2Bus_WrAck,
      IP2Bus_Error                   => user_IP2Bus_Error
    );

  ------------------------------------------
  -- connect internal signals
  ------------------------------------------
  ipif_IP2Bus_Data <= user_IP2Bus_Data;
  ipif_IP2Bus_WrAck <= user_IP2Bus_WrAck;
  ipif_IP2Bus_RdAck <= user_IP2Bus_RdAck;
  ipif_IP2Bus_Error <= user_IP2Bus_Error;

end IMP;
次に"vga.vhd"から呼び出される下位階層である "user_logic.v" ファイルにビデオコントローラIPの本体を記述します。"user_logic.v" は Verilog HDL というハードウェア記述言語で記載されています。
$ cd ../verilog
$ gedit user_logic.v
これを以下のように変更していきます。
変更後 変更前
//----------------------------------------------------------------------------
// user_logic.vhd - module
//----------------------------------------------------------------------------
//
// ***************************************************************************
// ** Copyright (c) 1995-2012 Xilinx, Inc.  All rights reserved.            **
// **                                                                       **
// ** Xilinx, Inc.                                                          **
// ** XILINX IS PROVIDING THIS DESIGN, CODE, OR INFORMATION "AS IS"         **
// ** AS A COURTESY TO YOU, SOLELY FOR USE IN DEVELOPING PROGRAMS AND       **
// ** SOLUTIONS FOR XILINX DEVICES.  BY PROVIDING THIS DESIGN, CODE,        **
// ** OR INFORMATION AS ONE POSSIBLE IMPLEMENTATION OF THIS FEATURE,        **
// ** APPLICATION OR STANDARD, XILINX IS MAKING NO REPRESENTATION           **
// ** THAT THIS IMPLEMENTATION IS FREE FROM ANY CLAIMS OF INFRINGEMENT,     **
// ** AND YOU ARE RESPONSIBLE FOR OBTAINING ANY RIGHTS YOU MAY REQUIRE      **
// ** FOR YOUR IMPLEMENTATION.  XILINX EXPRESSLY DISCLAIMS ANY              **
// ** WARRANTY WHATSOEVER WITH RESPECT TO THE ADEQUACY OF THE               **
// ** IMPLEMENTATION, INCLUDING BUT NOT LIMITED TO ANY WARRANTIES OR        **
// ** REPRESENTATIONS THAT THIS IMPLEMENTATION IS FREE FROM CLAIMS OF       **
// ** INFRINGEMENT, IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS       **
// ** FOR A PARTICULAR PURPOSE.                                             **
// **                                                                       **
// ***************************************************************************
//
//----------------------------------------------------------------------------
// Filename:          user_logic.vhd
// Version:           1.00.a
// Description:       User logic module.
// Date:              Wed Sep  5 11:37:21 2012 (by Create and Import Peripheral Wizard)
// Verilog Standard:  Verilog-2001
//----------------------------------------------------------------------------
// Naming Conventions:
//   active low signals:                    "*_n"
//   clock signals:                         "clk", "clk_div#", "clk_#x"
//   reset signals:                         "rst", "rst_n"
//   generics:                              "C_*"
//   user defined types:                    "*_TYPE"
//   state machine next state:              "*_ns"
//   state machine current state:           "*_cs"
//   combinatorial signals:                 "*_com"
//   pipelined or register delay signals:   "*_d#"
//   counter signals:                       "*cnt*"
//   clock enable signals:                  "*_ce"
//   internal version of output port:       "*_i"
//   device pins:                           "*_pin"
//   ports:                                 "- Names begin with Uppercase"
//   processes:                             "*_PROCESS"
//   component instantiations:              "I_<#|FUNC>"
//----------------------------------------------------------------------------

`define HMAX 100		// H total dots
`define HSIZ  80		// H Size
`define HSP   87		// H Sync. Pos.
`define HSL    2		// H Sync. Len.
`define HCR   16		// H dots per Char.
`define VMAX  47		// V total Line
`define VSIZ  45		// V Size
`define VSP   46		// V Sync. Pos.
`define VSL    1		// V Sync. Line
`define VCR   16		// V lines per Char.

module user_logic
(
  // -- ADD USER PORTS BELOW THIS LINE ---------------
  // --USER ports added here
  R,				// Red Data
  G,				// Green Data
  B,				// Blue Data
  HS,				// Hirizontal Sync.
  VS,				// Vertical Sync.
  DE,				// Data Enable
  // -- ADD USER PORTS ABOVE THIS LINE ---------------

  // -- DO NOT EDIT BELOW THIS LINE ------------------
  // -- Bus protocol ports, do not add to or delete
  Bus2IP_Clk,                     // Bus to IP clock
  Bus2IP_Reset,                   // Bus to IP reset
  Bus2IP_Addr,                    // Bus to IP address bus
  Bus2IP_CS,                      // Bus to IP chip select for user logic memory selection
  Bus2IP_RNW,                     // Bus to IP read/not write
  Bus2IP_Data,                    // Bus to IP data bus
  Bus2IP_BE,                      // Bus to IP byte enables
  IP2Bus_Data,                    // IP to Bus data bus
  IP2Bus_RdAck,                   // IP to Bus read transfer acknowledgement
  IP2Bus_WrAck,                   // IP to Bus write transfer acknowledgement
  IP2Bus_Error                    // IP to Bus error response
  // -- DO NOT EDIT ABOVE THIS LINE ------------------
); // user_logic

// -- ADD USER PARAMETERS BELOW THIS LINE ------------
// --USER parameters added here
// -- ADD USER PARAMETERS ABOVE THIS LINE ------------

// -- DO NOT EDIT BELOW THIS LINE --------------------
// -- Bus protocol parameters, do not add to or delete
parameter C_SLV_AWIDTH                   = 32;
parameter C_SLV_DWIDTH                   = 32;
parameter C_NUM_MEM                      = 1;
// -- DO NOT EDIT ABOVE THIS LINE --------------------

// -- ADD USER PORTS BELOW THIS LINE -----------------
// --USER ports added here
output [7:0] R, G, B;
output       HS, VS, DE;
// -- ADD USER PORTS ABOVE THIS LINE -----------------

// -- DO NOT EDIT BELOW THIS LINE --------------------
// -- Bus protocol ports, do not add to or delete
input                                     Bus2IP_Clk;
input                                     Bus2IP_Reset;
input      [0 : C_SLV_AWIDTH-1]           Bus2IP_Addr;
input      [0 : C_NUM_MEM-1]              Bus2IP_CS;
input                                     Bus2IP_RNW;
input      [0 : C_SLV_DWIDTH-1]           Bus2IP_Data;
input      [0 : C_SLV_DWIDTH/8-1]         Bus2IP_BE;
output     [0 : C_SLV_DWIDTH-1]           IP2Bus_Data;
output                                    IP2Bus_RdAck;
output                                    IP2Bus_WrAck;
output                                    IP2Bus_Error;
// -- DO NOT EDIT ABOVE THIS LINE --------------------

//----------------------------------------------------------------------------
// Implementation
//----------------------------------------------------------------------------

  // --USER nets declarations added here, as needed for user logic

  reg   [0 : C_SLV_DWIDTH-1]      IP2Bus_Data;
  reg                             IP2Bus_RdAck;

  reg   [0:7]       VRAM [0:4095];
  reg   [0:`HCR-1]  CGROM[0:4095];

  initial
    begin
      $readmemh( "MB_VRAM.mem",     VRAM  );
      $readmemh( "18x18ja_256.mem", CGROM );
    end

  reg    [7:0] HCNT;		// H Counter 0-99
  reg    [6:0] VCNT;		// V Counter 0-27
  reg    [4:0] RCNT;		// R Counter 0-18

  wire       CEP;
  reg  [3:0] CNT;

  wire [0:14] VADR;// VideoRAM Address

  reg  [0: 7]      CCOD;       // Character Code
  wire [0:11]      CGADR;      // CGROM Address
  reg  [0:`HCR-1]  CGDATA;     // Character Raster Data

  reg  [0:`HCR-1]  SR;	       // Shift Register

  // --USER logic implementation added here

  always @( posedge Bus2IP_Clk )
    if( Bus2IP_CS[0] & !Bus2IP_RNW  )
      VRAM[ Bus2IP_Addr[0:C_SLV_AWIDTH-3] ] = Bus2IP_Data[24:31];

  always @( posedge Bus2IP_Clk )
    begin
     IP2Bus_Data = { 24'h00_0000, VRAM[Bus2IP_Addr[0:C_SLV_AWIDTH-3] ] };
     IP2Bus_RdAck= Bus2IP_CS[0] &  Bus2IP_RNW;
    end

  // CNT Counter
  always @( posedge Bus2IP_Clk )
     if( Bus2IP_Reset ) CNT <= 0; else
                        CNT <= CNT + 1;

  assign CEP  = &CNT;	       // 4.6875MHz for character clock

  assign VADR = VCNT * `HSIZ + HCNT;

  // Pipeline Register
  always @( posedge Bus2IP_Clk )
    if( CEP )
      CCOD <= VRAM[VADR];

  // Counters
  always @( posedge Bus2IP_Clk )
    begin
      if( Bus2IP_Reset ) begin HCNT<=0; RCNT<=0; VCNT<=0; end
      if( CEP )
        begin
          if( HCNT == `HMAX-1 )
            begin
              HCNT <= 0;
              if( RCNT == `VCR-1 )
                begin
                  RCNT <= 0;
                  if( VCNT == `VMAX-1 ) VCNT <= 0;
                  else                  VCNT <= VCNT + 1;
                end
              else
                RCNT <= RCNT + 1;
            end
          else
            HCNT <= HCNT + 1;
        end
     end


  assign CGADR = { CCOD, RCNT[3:0] };

  always @( posedge Bus2IP_Clk )
    CGDATA= CGROM[ CGADR ];

  always @( posedge Bus2IP_Clk )
    begin
     if ( Bus2IP_Reset ) SR <= 0;      else
     if ( CEP  ) SR <= CGDATA;         else
                 SR <= { SR[1:`HCR-1], 1'b0 };
    end

  //Sync
  assign HS = ~( HCNT >= `HSP & HCNT < (`HSP + `HSL) );
  assign VS = ~( VCNT >= `VSP & VCNT < (`VSP + `VSL) );

  assign R = ( SR[0] ) ? 8'hff : 8'h00;
  assign G = ( SR[0] ) ? 8'hff : 8'h00;
  assign B = ( SR[0] ) ? 8'hff : 8'h00;
  assign DE = ( ( 1 < HCNT & HCNT < `HSIZ+2 ) & ( VCNT < `VSIZ ) & (RCNT < 16 ) );

  // ------------------------------------------------------------
  // Example code to drive IP to Bus signals
  // ------------------------------------------------------------

//assign IP2Bus_Data    = 0;
  assign IP2Bus_WrAck   = Bus2IP_CS[0] & !Bus2IP_RNW;
//assign IP2Bus_RdAck   = Bus2IP_CS[0] &  Bus2IP_RNW;
  assign IP2Bus_Error   = 0;

endmodule

//----------------------------------------------------------------------------
// user_logic.vhd - module
//----------------------------------------------------------------------------
//
// ***************************************************************************
// ** Copyright (c) 1995-2012 Xilinx, Inc.  All rights reserved.            **
// **                                                                       **
// ** Xilinx, Inc.                                                          **
// ** XILINX IS PROVIDING THIS DESIGN, CODE, OR INFORMATION "AS IS"         **
// ** AS A COURTESY TO YOU, SOLELY FOR USE IN DEVELOPING PROGRAMS AND       **
// ** SOLUTIONS FOR XILINX DEVICES.  BY PROVIDING THIS DESIGN, CODE,        **
// ** OR INFORMATION AS ONE POSSIBLE IMPLEMENTATION OF THIS FEATURE,        **
// ** APPLICATION OR STANDARD, XILINX IS MAKING NO REPRESENTATION           **
// ** THAT THIS IMPLEMENTATION IS FREE FROM ANY CLAIMS OF INFRINGEMENT,     **
// ** AND YOU ARE RESPONSIBLE FOR OBTAINING ANY RIGHTS YOU MAY REQUIRE      **
// ** FOR YOUR IMPLEMENTATION.  XILINX EXPRESSLY DISCLAIMS ANY              **
// ** WARRANTY WHATSOEVER WITH RESPECT TO THE ADEQUACY OF THE               **
// ** IMPLEMENTATION, INCLUDING BUT NOT LIMITED TO ANY WARRANTIES OR        **
// ** REPRESENTATIONS THAT THIS IMPLEMENTATION IS FREE FROM CLAIMS OF       **
// ** INFRINGEMENT, IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS       **
// ** FOR A PARTICULAR PURPOSE.                                             **
// **                                                                       **
// ***************************************************************************
//
//----------------------------------------------------------------------------
// Filename:          user_logic.vhd
// Version:           1.00.a
// Description:       User logic module.
// Date:              Wed Sep  5 11:37:21 2012 (by Create and Import Peripheral Wizard)
// Verilog Standard:  Verilog-2001
//----------------------------------------------------------------------------
// Naming Conventions:
//   active low signals:                    "*_n"
//   clock signals:                         "clk", "clk_div#", "clk_#x"
//   reset signals:                         "rst", "rst_n"
//   generics:                              "C_*"
//   user defined types:                    "*_TYPE"
//   state machine next state:              "*_ns"
//   state machine current state:           "*_cs"
//   combinatorial signals:                 "*_com"
//   pipelined or register delay signals:   "*_d#"
//   counter signals:                       "*cnt*"
//   clock enable signals:                  "*_ce"
//   internal version of output port:       "*_i"
//   device pins:                           "*_pin"
//   ports:                                 "- Names begin with Uppercase"
//   processes:                             "*_PROCESS"
//   component instantiations:              "I_<#|FUNC>"
//----------------------------------------------------------------------------













module user_logic
(
  // -- ADD USER PORTS BELOW THIS LINE ---------------
  // --USER ports added here







  // -- ADD USER PORTS ABOVE THIS LINE ---------------

  // -- DO NOT EDIT BELOW THIS LINE ------------------
  // -- Bus protocol ports, do not add to or delete
  Bus2IP_Clk,                     // Bus to IP clock
  Bus2IP_Reset,                   // Bus to IP reset
  Bus2IP_Addr,                    // Bus to IP address bus
  Bus2IP_CS,                      // Bus to IP chip select for user logic memory selection
  Bus2IP_RNW,                     // Bus to IP read/not write
  Bus2IP_Data,                    // Bus to IP data bus
  Bus2IP_BE,                      // Bus to IP byte enables
  IP2Bus_Data,                    // IP to Bus data bus
  IP2Bus_RdAck,                   // IP to Bus read transfer acknowledgement
  IP2Bus_WrAck,                   // IP to Bus write transfer acknowledgement
  IP2Bus_Error                    // IP to Bus error response
  // -- DO NOT EDIT ABOVE THIS LINE ------------------
); // user_logic

// -- ADD USER PARAMETERS BELOW THIS LINE ------------
// --USER parameters added here
// -- ADD USER PARAMETERS ABOVE THIS LINE ------------

// -- DO NOT EDIT BELOW THIS LINE --------------------
// -- Bus protocol parameters, do not add to or delete
parameter C_SLV_AWIDTH                   = 32;
parameter C_SLV_DWIDTH                   = 32;
parameter C_NUM_MEM                      = 1;
// -- DO NOT EDIT ABOVE THIS LINE --------------------

// -- ADD USER PORTS BELOW THIS LINE -----------------
// --USER ports added here


// -- ADD USER PORTS ABOVE THIS LINE -----------------

// -- DO NOT EDIT BELOW THIS LINE --------------------
// -- Bus protocol ports, do not add to or delete
input                                     Bus2IP_Clk;
input                                     Bus2IP_Reset;
input      [0 : C_SLV_AWIDTH-1]           Bus2IP_Addr;
input      [0 : C_NUM_MEM-1]              Bus2IP_CS;
input                                     Bus2IP_RNW;
input      [0 : C_SLV_DWIDTH-1]           Bus2IP_Data;
input      [0 : C_SLV_DWIDTH/8-1]         Bus2IP_BE;
output     [0 : C_SLV_DWIDTH-1]           IP2Bus_Data;
output                                    IP2Bus_RdAck;
output                                    IP2Bus_WrAck;
output                                    IP2Bus_Error;
// -- DO NOT EDIT ABOVE THIS LINE --------------------

//----------------------------------------------------------------------------
// Implementation
//----------------------------------------------------------------------------

  // --USER nets declarations added here, as needed for user logic




























  // --USER logic implementation added here




































































  // ------------------------------------------------------------
  // Example code to drive IP to Bus signals
  // ------------------------------------------------------------

  assign IP2Bus_Data    = 0;
  assign IP2Bus_WrAck   = Bus2IP_WrCE[0];
  assign IP2Bus_RdAck   = Bus2IP_RdCE[0];
  assign IP2Bus_Error   = 0;

endmodule


"user_logic.v" から、ビデオコントローラ内にある2つのメモリを初期化するためのファイルを読み込む必要があります。
以下からファイルを取り出し、"pcores/vga_v1_00_a/hdl/verilog" ディレクトリ内にコピーしておきます。

MB_VRAM.mem (ビデオ用メモリの初期化ファイル)
18x18ja_256.mem (このフォントファイルは、X11用フォントである font-misc-misc-1.0.0.tar.gz 内の "18x18ja.bdf" から作成している。)

なお、以下のコマンドによりコピーすることができます。
wget http://www.arch.cs.kumamoto-u.ac.jp/~kuga/cad/life/2012/sample/MB_VRAM.mem
wget http://www.arch.cs.kumamoto-u.ac.jp/~kuga/cad/life/2012/sample/18x18ja_256.mem
次に、ビデオ表示用に、R, G, B, HS, VS, DE の出力端子を追加しましたので、その情報を mpd というファイルに追加する必要があります。
以下のコマンドにより情報を追加します。
$ cd ../../data/
$ gedit vga_v2_1_0.mpd
"## Bus Interfaces"行，および，"## Ports" 行の下に以下の情報を追加します。
## Bus Interfaces
BUS_INTERFACE BUS = DVI_VIDEO_OUT, BUS_STD = DVI_VIDEO, BUS_TYPE = INITIATOR

## Ports
PORT R  = red,   DIR = O, VEC = [7:0], BUS = DVI_VIDEO_OUT
PORT G  = green, DIR = O, VEC = [7:0], BUS = DVI_VIDEO_OUT
PORT B  = blue,  DIR = O, VEC = [7:0], BUS = DVI_VIDEO_OUT
PORT HS = hsync, DIR = O, BUS = DVI_VIDEO_OUT
PORT VS = vsync, DIR = O, BUS = DVI_VIDEO_OUT
PORT DE = de,    DIR = O, BUS = DVI_VIDEO_OUT
これでビデオコントローラの記述が終了です。
次は、 DVIエンコーダモジュールの作成 です。
| Back | Top | Next |
