Create a vide module

In the previous "Create or Import Peripherarl" step, skelton code is created for video module.
In addition, we have to describe a behavior of the internal video module.

The specification of the vide module

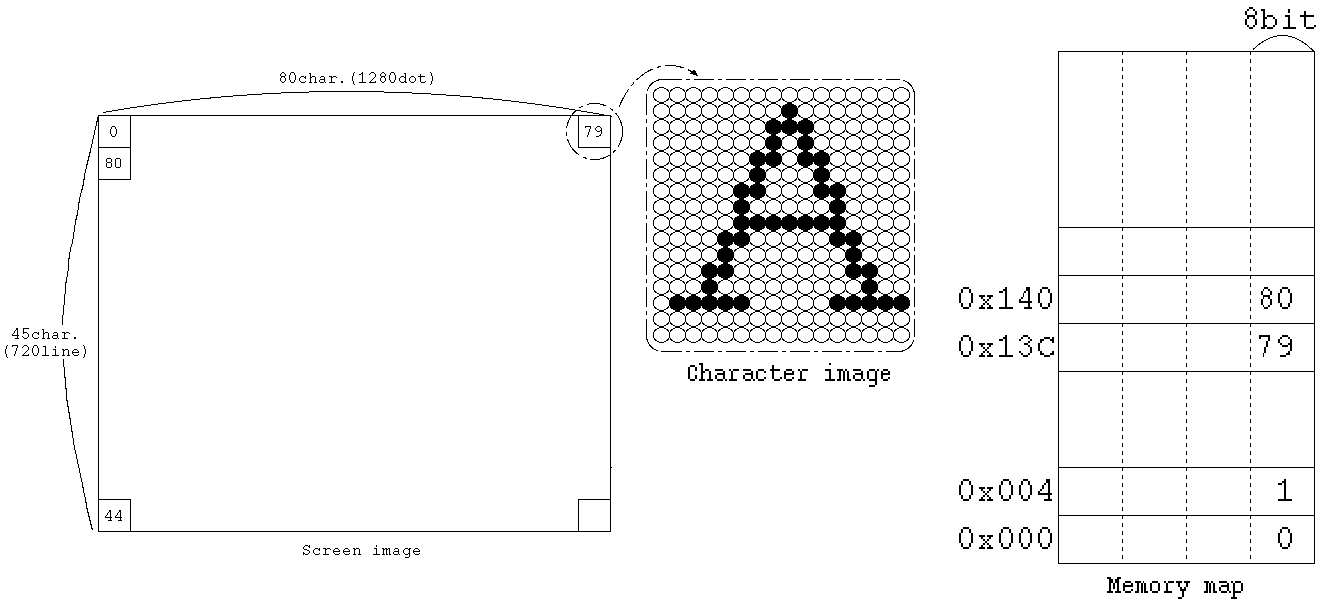

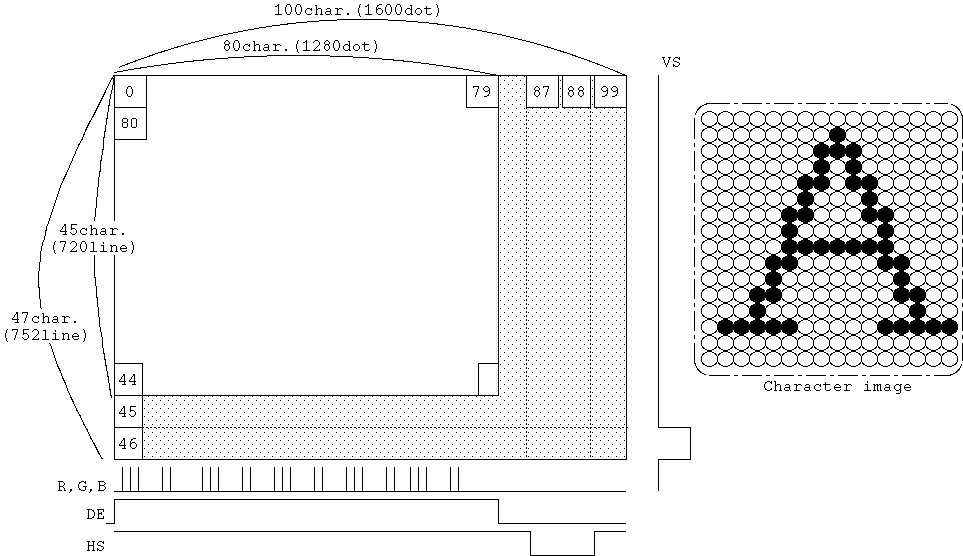

画面構成、文字構成およびメモリマップの対応を下図に示します。
MicroBlazeのような32ビットプロセッサの場合、メモリのアドレスはバイト単位に振られていますが、
1回のデータ読み書きで32ビット(4バイト)の同時アクセスが可能となっています。
したがって、バイト単位でアクセスするメモリの場合は4アドレス飛びに配置されることになります。

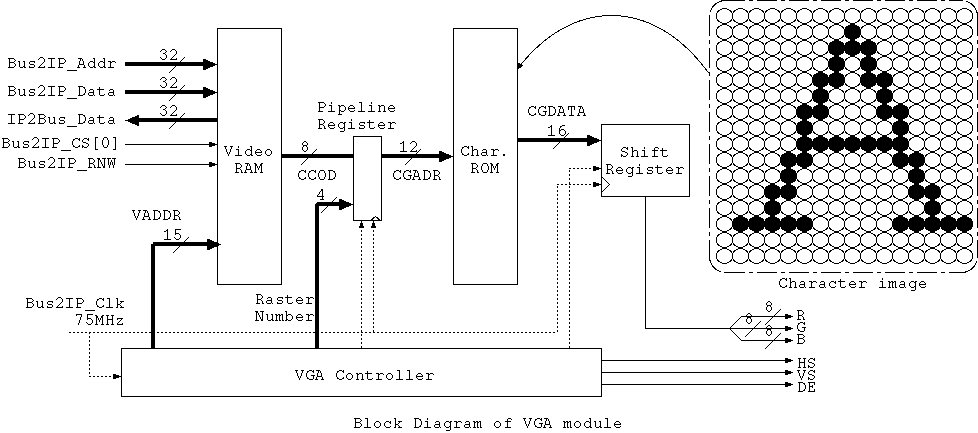

Blockdiagram of video module

Video module includes of following blocks;



Video timing

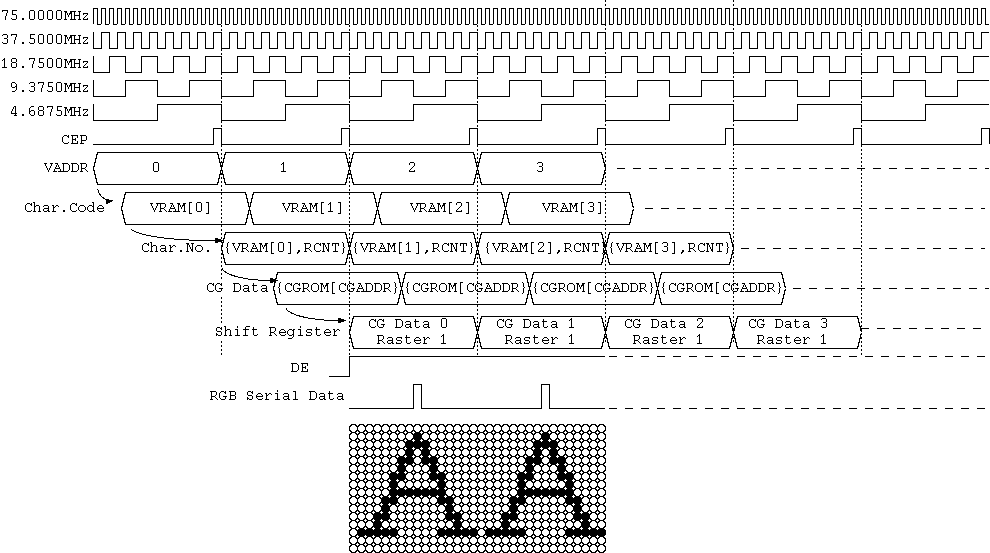

液晶モニタへの画像表示は、通常のテレビと同様にラスタスキャンで表示を行う。 これらのカウンタ等を実現するために、以下のような定義をしておくと良いであろう。
`define HMAX 100 // H total dots
`define HSIZ  80 // H Size
`define HSP   87 // H Sync. Pos.
`define HSL    2 // H Sync. Len.
`define HCR   16 // H dots per Char.
`define VMAX  47 // V total Line
`define VSIZ  45 // V Size
`define VSP   46 // V Sync. Pos.
`define VSL    1 // V Sync. Line
`define VCR   16 // V lines per Char.
Counter definition is follows;
reg    [3:0] CNT;
reg    [7:0] HCNT;  // H Counter 0-99
reg    [6:0] VCNT;  // V Counter 0-46
reg    [4:0] RCNT;  // R Counter 0-15

Accessing for Video RAM and Character ROM



It is finished to define the specification. And we try to describe the behavior of video controller.
Now two files are modified to create video moddule.
"vga.vhd" is top file of video module. Outputs, R, G, B, HS, VS, DE are added to the top file.
This file is described in VHDL.
$ cd pcores/vga_v1_00_a/hdl/vhdl
$ gedit vga.vhd
Following fragment code is added to two places.
    R  : out  std_logic_vector(7 downto 0);
    G  : out  std_logic_vector(7 downto 0);
    B  : out  std_logic_vector(7 downto 0);
    HS : out  std_logic;
    VS : out  std_logic;
    DE : out  std_logic;
Following fragment code is added to one place.
      R => R,
      G => G,
      B => B,
      HS=> HS,
      VS=> VS,
      DE=> DE,
After modifying （add only red lines） before modifying
------------------------------------------------------------------------------

-- vga.vhd - entity/architecture pair
------------------------------------------------------------------------------
-- IMPORTANT:
-- DO NOT MODIFY THIS FILE EXCEPT IN THE DESIGNATED SECTIONS.
--
-- SEARCH FOR --USER TO DETERMINE WHERE CHANGES ARE ALLOWED.
--
-- TYPICALLY, THE ONLY ACCEPTABLE CHANGES INVOLVE ADDING NEW
-- PORTS AND GENERICS THAT GET PASSED THROUGH TO THE INSTANTIATION
-- OF THE USER_LOGIC ENTITY.
------------------------------------------------------------------------------
--
-- ***************************************************************************
-- ** Copyright (c) 1995-2012 Xilinx, Inc.  All rights reserved.            **
-- **                                                                       **
-- ** Xilinx, Inc.                                                          **
-- ** XILINX IS PROVIDING THIS DESIGN, CODE, OR INFORMATION "AS IS"         **
-- ** AS A COURTESY TO YOU, SOLELY FOR USE IN DEVELOPING PROGRAMS AND       **
-- ** SOLUTIONS FOR XILINX DEVICES.  BY PROVIDING THIS DESIGN, CODE,        **
-- ** OR INFORMATION AS ONE POSSIBLE IMPLEMENTATION OF THIS FEATURE,        **
-- ** APPLICATION OR STANDARD, XILINX IS MAKING NO REPRESENTATION           **
-- ** THAT THIS IMPLEMENTATION IS FREE FROM ANY CLAIMS OF INFRINGEMENT,     **
-- ** AND YOU ARE RESPONSIBLE FOR OBTAINING ANY RIGHTS YOU MAY REQUIRE      **
-- ** FOR YOUR IMPLEMENTATION.  XILINX EXPRESSLY DISCLAIMS ANY              **
-- ** WARRANTY WHATSOEVER WITH RESPECT TO THE ADEQUACY OF THE               **
-- ** IMPLEMENTATION, INCLUDING BUT NOT LIMITED TO ANY WARRANTIES OR        **
-- ** REPRESENTATIONS THAT THIS IMPLEMENTATION IS FREE FROM CLAIMS OF       **
-- ** INFRINGEMENT, IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS       **
-- ** FOR A PARTICULAR PURPOSE.                                             **
-- **                                                                       **
-- ***************************************************************************
--
------------------------------------------------------------------------------
-- Filename:          vga.vhd
-- Version:           1.00.a
-- Description:       Top level design, instantiates library components and user logic.
-- Date:              Thu Nov  6 13:25:19 2014 (by Create and Import Peripheral Wizard)
-- VHDL Standard:     VHDL'93
------------------------------------------------------------------------------
-- Naming Conventions:
--   active low signals:                    "*_n"
--   clock signals:                         "clk", "clk_div#", "clk_#x"
--   reset signals:                         "rst", "rst_n"
--   generics:                              "C_*"
--   user defined types:                    "*_TYPE"
--   state machine next state:              "*_ns"
--   state machine current state:           "*_cs"
--   combinatorial signals:                 "*_com"
--   pipelined or register delay signals:   "*_d#"
--   counter signals:                       "*cnt*"
--   clock enable signals:                  "*_ce"
--   internal version of output port:       "*_i"
--   device pins:                           "*_pin"
--   ports:                                 "- Names begin with Uppercase"
--   processes:                             "*_PROCESS"
--   component instantiations:              "I_<#|FUNC>"
------------------------------------------------------------------------------

library ieee;
use ieee.std_logic_1164.all;
use ieee.std_logic_arith.all;
use ieee.std_logic_unsigned.all;

library proc_common_v3_00_a;
use proc_common_v3_00_a.proc_common_pkg.all;
use proc_common_v3_00_a.ipif_pkg.all;

library axi_lite_ipif_v1_01_a;
use axi_lite_ipif_v1_01_a.axi_lite_ipif;

------------------------------------------------------------------------------
-- Entity section
------------------------------------------------------------------------------
-- Definition of Generics:
--   C_S_AXI_DATA_WIDTH           -- AXI4LITE slave: Data width
--   C_S_AXI_ADDR_WIDTH           -- AXI4LITE slave: Address Width
--   C_S_AXI_MIN_SIZE             -- AXI4LITE slave: Min Size
--   C_USE_WSTRB                  -- AXI4LITE slave: Write Strobe
--   C_DPHASE_TIMEOUT             -- AXI4LITE slave: Data Phase Timeout
--   C_BASEADDR                   -- AXI4LITE slave: base address
--   C_HIGHADDR                   -- AXI4LITE slave: high address
--   C_FAMILY                     -- FPGA Family
--   C_NUM_REG                    -- Number of software accessible registers
--   C_NUM_MEM                    -- Number of address-ranges
--   C_SLV_AWIDTH                 -- Slave interface address bus width
--   C_SLV_DWIDTH                 -- Slave interface data bus width
--
-- Definition of Ports:
--   S_AXI_ACLK                   -- AXI4LITE slave: Clock
--   S_AXI_ARESETN                -- AXI4LITE slave: Reset
--   S_AXI_AWADDR                 -- AXI4LITE slave: Write address
--   S_AXI_AWVALID                -- AXI4LITE slave: Write address valid
--   S_AXI_WDATA                  -- AXI4LITE slave: Write data
--   S_AXI_WSTRB                  -- AXI4LITE slave: Write strobe
--   S_AXI_WVALID                 -- AXI4LITE slave: Write data valid
--   S_AXI_BREADY                 -- AXI4LITE slave: Response ready
--   S_AXI_ARADDR                 -- AXI4LITE slave: Read address
--   S_AXI_ARVALID                -- AXI4LITE slave: Read address valid
--   S_AXI_RREADY                 -- AXI4LITE slave: Read data ready
--   S_AXI_ARREADY                -- AXI4LITE slave: read addres ready
--   S_AXI_RDATA                  -- AXI4LITE slave: Read data
--   S_AXI_RRESP                  -- AXI4LITE slave: Read data response
--   S_AXI_RVALID                 -- AXI4LITE slave: Read data valid
--   S_AXI_WREADY                 -- AXI4LITE slave: Write data ready
--   S_AXI_BRESP                  -- AXI4LITE slave: Response
--   S_AXI_BVALID                 -- AXI4LITE slave: Resonse valid
--   S_AXI_AWREADY                -- AXI4LITE slave: Wrte address ready
------------------------------------------------------------------------------

entity vga is
  generic
  (
    -- ADD USER GENERICS BELOW THIS LINE ---------------
    --USER generics added here
    -- ADD USER GENERICS ABOVE THIS LINE ---------------

    -- DO NOT EDIT BELOW THIS LINE ---------------------
    -- Bus protocol parameters, do not add to or delete
    C_S_AXI_DATA_WIDTH             : integer              := 32;
    C_S_AXI_ADDR_WIDTH             : integer              := 32;
    C_S_AXI_MIN_SIZE               : std_logic_vector     := X"000001FF";
    C_USE_WSTRB                    : integer              := 0;
    C_DPHASE_TIMEOUT               : integer              := 8;
    C_BASEADDR                     : std_logic_vector     := X"FFFFFFFF";
    C_HIGHADDR                     : std_logic_vector     := X"00000000";
    C_FAMILY                       : string               := "virtex6";
    C_NUM_REG                      : integer              := 1;
    C_NUM_MEM                      : integer              := 1;
    C_SLV_AWIDTH                   : integer              := 32;
    C_SLV_DWIDTH                   : integer              := 32
    -- DO NOT EDIT ABOVE THIS LINE ---------------------
  );
  port
  (
    -- ADD USER PORTS BELOW THIS LINE ------------------
    --USER ports added here
    R  : out  std_logic_vector(7 downto 0);
    G  : out  std_logic_vector(7 downto 0);
    B  : out  std_logic_vector(7 downto 0);
    HS : out  std_logic;
    VS : out  std_logic;
    DE : out  std_logic;
    -- ADD USER PORTS ABOVE THIS LINE ------------------

    -- DO NOT EDIT BELOW THIS LINE ---------------------
    -- Bus protocol ports, do not add to or delete
    S_AXI_ACLK                     : in  std_logic;
    S_AXI_ARESETN                  : in  std_logic;
    S_AXI_AWADDR                   : in  std_logic_vector(C_S_AXI_ADDR_WIDTH-1 downto 0);
    S_AXI_AWVALID                  : in  std_logic;
    S_AXI_WDATA                    : in  std_logic_vector(C_S_AXI_DATA_WIDTH-1 downto 0);
    S_AXI_WSTRB                    : in  std_logic_vector((C_S_AXI_DATA_WIDTH/8)-1 downto 0);
    S_AXI_WVALID                   : in  std_logic;
    S_AXI_BREADY                   : in  std_logic;
    S_AXI_ARADDR                   : in  std_logic_vector(C_S_AXI_ADDR_WIDTH-1 downto 0);
    S_AXI_ARVALID                  : in  std_logic;
    S_AXI_RREADY                   : in  std_logic;
    S_AXI_ARREADY                  : out std_logic;
    S_AXI_RDATA                    : out std_logic_vector(C_S_AXI_DATA_WIDTH-1 downto 0);
    S_AXI_RRESP                    : out std_logic_vector(1 downto 0);
    S_AXI_RVALID                   : out std_logic;
    S_AXI_WREADY                   : out std_logic;
    S_AXI_BRESP                    : out std_logic_vector(1 downto 0);
    S_AXI_BVALID                   : out std_logic;
    S_AXI_AWREADY                  : out std_logic
    -- DO NOT EDIT ABOVE THIS LINE ---------------------
  );

  attribute MAX_FANOUT : string;
  attribute SIGIS : string;
  attribute MAX_FANOUT of S_AXI_ACLK       : signal is "10000";
  attribute MAX_FANOUT of S_AXI_ARESETN       : signal is "10000";
  attribute SIGIS of S_AXI_ACLK       : signal is "Clk";
  attribute SIGIS of S_AXI_ARESETN       : signal is "Rst";
end entity vga;

------------------------------------------------------------------------------
-- Architecture section
------------------------------------------------------------------------------

architecture IMP of vga is

  constant USER_SLV_DWIDTH                : integer              := C_S_AXI_DATA_WIDTH;

  constant IPIF_SLV_DWIDTH                : integer              := C_S_AXI_DATA_WIDTH;

  constant ZERO_ADDR_PAD                  : std_logic_vector(0 to 31) := (others => '0');
  constant USER_SLV_BASEADDR              : std_logic_vector     := C_BASEADDR;
  constant USER_SLV_HIGHADDR              : std_logic_vector     := C_HIGHADDR;

  constant IPIF_ARD_ADDR_RANGE_ARRAY      : SLV64_ARRAY_TYPE     :=
    (
      ZERO_ADDR_PAD & USER_SLV_BASEADDR,  -- user logic slave space base address
      ZERO_ADDR_PAD & USER_SLV_HIGHADDR   -- user logic slave space high address
    );

  constant USER_SLV_NUM_REG               : integer              := 1;
  constant USER_NUM_REG                   : integer              := USER_SLV_NUM_REG;
  constant TOTAL_IPIF_CE                  : integer              := USER_NUM_REG;

  constant IPIF_ARD_NUM_CE_ARRAY          : INTEGER_ARRAY_TYPE   :=
    (
      0  => (USER_SLV_NUM_REG)            -- number of ce for user logic slave space
    );

  ------------------------------------------
  -- Index for CS/CE
  ------------------------------------------
  constant USER_SLV_CS_INDEX              : integer := 0;
  constant USER_SLV_CE_INDEX              : integer := calc_start_ce_index(IPIF_ARD_NUM_CE_ARRAY, USER_SLV_CS_INDEX);

  constant USER_CE_INDEX                  : integer := USER_SLV_CE_INDEX;

  ------------------------------------------
  -- IP Interconnect (IPIC) signal declarations
  ------------------------------------------
  signal ipif_Bus2IP_Clk                : std_logic;
  signal ipif_Bus2IP_Resetn             : std_logic;
  signal ipif_Bus2IP_Addr               : std_logic_vector(C_S_AXI_ADDR_WIDTH-1 downto 0);
  signal ipif_Bus2IP_RNW                : std_logic;
  signal ipif_Bus2IP_BE                 : std_logic_vector(IPIF_SLV_DWIDTH/8-1 downto 0);
  signal ipif_Bus2IP_CS                 : std_logic_vector((IPIF_ARD_ADDR_RANGE_ARRAY'LENGTH)/2-1 downto 0);
  signal ipif_Bus2IP_RdCE               : std_logic_vector(calc_num_ce(IPIF_ARD_NUM_CE_ARRAY)-1 downto 0);
  signal ipif_Bus2IP_WrCE               : std_logic_vector(calc_num_ce(IPIF_ARD_NUM_CE_ARRAY)-1 downto 0);
  signal ipif_Bus2IP_Data               : std_logic_vector(IPIF_SLV_DWIDTH-1 downto 0);
  signal ipif_IP2Bus_WrAck              : std_logic;
  signal ipif_IP2Bus_RdAck              : std_logic;
  signal ipif_IP2Bus_Error              : std_logic;
  signal ipif_IP2Bus_Data               : std_logic_vector(IPIF_SLV_DWIDTH-1 downto 0);
  signal user_Bus2IP_RdCE               : std_logic_vector(USER_NUM_REG-1 downto 0);
  signal user_Bus2IP_WrCE               : std_logic_vector(USER_NUM_REG-1 downto 0);
  signal user_IP2Bus_Data               : std_logic_vector(USER_SLV_DWIDTH-1 downto 0);
  signal user_IP2Bus_RdAck              : std_logic;
  signal user_IP2Bus_WrAck              : std_logic;
  signal user_IP2Bus_Error              : std_logic;

  ------------------------------------------
  -- Component declaration for verilog user logic
  ------------------------------------------
  component user_logic is
    generic
    (
      -- ADD USER GENERICS BELOW THIS LINE ---------------
      --USER generics added here
      -- ADD USER GENERICS ABOVE THIS LINE ---------------

      -- DO NOT EDIT BELOW THIS LINE ---------------------
      -- Bus protocol parameters, do not add to or delete
      C_NUM_REG                      : integer              := 1;
      C_SLV_DWIDTH                   : integer              := 32
      -- DO NOT EDIT ABOVE THIS LINE ---------------------
    );
    port
    (
      -- ADD USER PORTS BELOW THIS LINE ------------------
      --USER ports added here
      R  : out  std_logic_vector(7 downto 0);
      G  : out  std_logic_vector(7 downto 0);
      B  : out  std_logic_vector(7 downto 0);
      HS : out  std_logic;
      VS : out  std_logic;
      DE : out  std_logic;
      -- ADD USER PORTS ABOVE THIS LINE ------------------

      -- DO NOT EDIT BELOW THIS LINE ---------------------
      -- Bus protocol ports, do not add to or delete
      Bus2IP_Clk                     : in  std_logic;
      Bus2IP_Resetn                  : in  std_logic;
      Bus2IP_Addr                    : in  std_logic_vector(0 to 31);
      Bus2IP_Data                    : in  std_logic_vector(C_SLV_DWIDTH-1 downto 0);
      Bus2IP_BE                      : in  std_logic_vector(C_SLV_DWIDTH/8-1 downto 0);
      Bus2IP_RdCE                    : in  std_logic_vector(C_NUM_REG-1 downto 0);
      Bus2IP_WrCE                    : in  std_logic_vector(C_NUM_REG-1 downto 0);
      IP2Bus_Data                    : out std_logic_vector(C_SLV_DWIDTH-1 downto 0);
      IP2Bus_RdAck                   : out std_logic;
      IP2Bus_WrAck                   : out std_logic;
      IP2Bus_Error                   : out std_logic
      -- DO NOT EDIT ABOVE THIS LINE ---------------------
    );
  end component user_logic;

begin

  ------------------------------------------
  -- instantiate axi_lite_ipif
  ------------------------------------------
  AXI_LITE_IPIF_I : entity axi_lite_ipif_v1_01_a.axi_lite_ipif
    generic map
    (
      C_S_AXI_DATA_WIDTH             => IPIF_SLV_DWIDTH,
      C_S_AXI_ADDR_WIDTH             => C_S_AXI_ADDR_WIDTH,
      C_S_AXI_MIN_SIZE               => C_S_AXI_MIN_SIZE,
      C_USE_WSTRB                    => C_USE_WSTRB,
      C_DPHASE_TIMEOUT               => C_DPHASE_TIMEOUT,
      C_ARD_ADDR_RANGE_ARRAY         => IPIF_ARD_ADDR_RANGE_ARRAY,
      C_ARD_NUM_CE_ARRAY             => IPIF_ARD_NUM_CE_ARRAY,
      C_FAMILY                       => C_FAMILY
    )
    port map
    (
      S_AXI_ACLK                     => S_AXI_ACLK,
      S_AXI_ARESETN                  => S_AXI_ARESETN,
      S_AXI_AWADDR                   => S_AXI_AWADDR,
      S_AXI_AWVALID                  => S_AXI_AWVALID,
      S_AXI_WDATA                    => S_AXI_WDATA,
      S_AXI_WSTRB                    => S_AXI_WSTRB,
      S_AXI_WVALID                   => S_AXI_WVALID,
      S_AXI_BREADY                   => S_AXI_BREADY,
      S_AXI_ARADDR                   => S_AXI_ARADDR,
      S_AXI_ARVALID                  => S_AXI_ARVALID,
      S_AXI_RREADY                   => S_AXI_RREADY,
      S_AXI_ARREADY                  => S_AXI_ARREADY,
      S_AXI_RDATA                    => S_AXI_RDATA,
      S_AXI_RRESP                    => S_AXI_RRESP,
      S_AXI_RVALID                   => S_AXI_RVALID,
      S_AXI_WREADY                   => S_AXI_WREADY,
      S_AXI_BRESP                    => S_AXI_BRESP,
      S_AXI_BVALID                   => S_AXI_BVALID,
      S_AXI_AWREADY                  => S_AXI_AWREADY,
      Bus2IP_Clk                     => ipif_Bus2IP_Clk,
      Bus2IP_Resetn                  => ipif_Bus2IP_Resetn,
      Bus2IP_Addr                    => ipif_Bus2IP_Addr,
      Bus2IP_RNW                     => ipif_Bus2IP_RNW,
      Bus2IP_BE                      => ipif_Bus2IP_BE,
      Bus2IP_CS                      => ipif_Bus2IP_CS,
      Bus2IP_RdCE                    => ipif_Bus2IP_RdCE,
      Bus2IP_WrCE                    => ipif_Bus2IP_WrCE,
      Bus2IP_Data                    => ipif_Bus2IP_Data,
      IP2Bus_WrAck                   => ipif_IP2Bus_WrAck,
      IP2Bus_RdAck                   => ipif_IP2Bus_RdAck,
      IP2Bus_Error                   => ipif_IP2Bus_Error,
      IP2Bus_Data                    => ipif_IP2Bus_Data
    );

  ------------------------------------------
  -- instantiate User Logic
  ------------------------------------------
  USER_LOGIC_I : component user_logic
    generic map
    (
      -- MAP USER GENERICS BELOW THIS LINE ---------------
      --USER generics mapped here
      -- MAP USER GENERICS ABOVE THIS LINE ---------------

      C_NUM_REG                      => USER_NUM_REG,
      C_SLV_DWIDTH                   => USER_SLV_DWIDTH
    )
    port map
    (
      -- MAP USER PORTS BELOW THIS LINE ------------------
      --USER ports mapped here
      R => R,
      G => G,
      B => B,
      HS=> HS,
      VS=> VS,
      DE=> DE,
      -- MAP USER PORTS ABOVE THIS LINE ------------------

      Bus2IP_Clk                     => ipif_Bus2IP_Clk,
      Bus2IP_Resetn                  => ipif_Bus2IP_Resetn,
      Bus2IP_Addr                    => ipif_Bus2IP_Addr,
      Bus2IP_Data                    => ipif_Bus2IP_Data,
      Bus2IP_BE                      => ipif_Bus2IP_BE,
      Bus2IP_RdCE                    => user_Bus2IP_RdCE,
      Bus2IP_WrCE                    => user_Bus2IP_WrCE,
      IP2Bus_Data                    => user_IP2Bus_Data,
      IP2Bus_RdAck                   => user_IP2Bus_RdAck,
      IP2Bus_WrAck                   => user_IP2Bus_WrAck,
      IP2Bus_Error                   => user_IP2Bus_Error
    );

  ------------------------------------------
  -- connect internal signals
  ------------------------------------------
  ipif_IP2Bus_Data <= user_IP2Bus_Data;
  ipif_IP2Bus_WrAck <= user_IP2Bus_WrAck;
  ipif_IP2Bus_RdAck <= user_IP2Bus_RdAck;
  ipif_IP2Bus_Error <= user_IP2Bus_Error;

  user_Bus2IP_RdCE <= ipif_Bus2IP_RdCE(USER_NUM_REG-1 downto 0);
  user_Bus2IP_WrCE <= ipif_Bus2IP_WrCE(USER_NUM_REG-1 downto 0);

end IMP;

------------------------------------------------------------------------------
-- vga.vhd - entity/architecture pair
------------------------------------------------------------------------------
-- IMPORTANT:
-- DO NOT MODIFY THIS FILE EXCEPT IN THE DESIGNATED SECTIONS.
--
-- SEARCH FOR --USER TO DETERMINE WHERE CHANGES ARE ALLOWED.
--
-- TYPICALLY, THE ONLY ACCEPTABLE CHANGES INVOLVE ADDING NEW
-- PORTS AND GENERICS THAT GET PASSED THROUGH TO THE INSTANTIATION
-- OF THE USER_LOGIC ENTITY.
------------------------------------------------------------------------------
--
-- ***************************************************************************
-- ** Copyright (c) 1995-2012 Xilinx, Inc.  All rights reserved.            **
-- **                                                                       **
-- ** Xilinx, Inc.                                                          **
-- ** XILINX IS PROVIDING THIS DESIGN, CODE, OR INFORMATION "AS IS"         **
-- ** AS A COURTESY TO YOU, SOLELY FOR USE IN DEVELOPING PROGRAMS AND       **
-- ** SOLUTIONS FOR XILINX DEVICES.  BY PROVIDING THIS DESIGN, CODE,        **
-- ** OR INFORMATION AS ONE POSSIBLE IMPLEMENTATION OF THIS FEATURE,        **
-- ** APPLICATION OR STANDARD, XILINX IS MAKING NO REPRESENTATION           **
-- ** THAT THIS IMPLEMENTATION IS FREE FROM ANY CLAIMS OF INFRINGEMENT,     **
-- ** AND YOU ARE RESPONSIBLE FOR OBTAINING ANY RIGHTS YOU MAY REQUIRE      **
-- ** FOR YOUR IMPLEMENTATION.  XILINX EXPRESSLY DISCLAIMS ANY              **
-- ** WARRANTY WHATSOEVER WITH RESPECT TO THE ADEQUACY OF THE               **
-- ** IMPLEMENTATION, INCLUDING BUT NOT LIMITED TO ANY WARRANTIES OR        **
-- ** REPRESENTATIONS THAT THIS IMPLEMENTATION IS FREE FROM CLAIMS OF       **
-- ** INFRINGEMENT, IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS       **
-- ** FOR A PARTICULAR PURPOSE.                                             **
-- **                                                                       **
-- ***************************************************************************
--
------------------------------------------------------------------------------
-- Filename:          vga.vhd
-- Version:           1.00.a
-- Description:       Top level design, instantiates library components and user logic.
-- Date:              Thu Nov  6 13:25:19 2014 (by Create and Import Peripheral Wizard)
-- VHDL Standard:     VHDL'93
------------------------------------------------------------------------------
-- Naming Conventions:
--   active low signals:                    "*_n"
--   clock signals:                         "clk", "clk_div#", "clk_#x"
--   reset signals:                         "rst", "rst_n"
--   generics:                              "C_*"
--   user defined types:                    "*_TYPE"
--   state machine next state:              "*_ns"
--   state machine current state:           "*_cs"
--   combinatorial signals:                 "*_com"
--   pipelined or register delay signals:   "*_d#"
--   counter signals:                       "*cnt*"
--   clock enable signals:                  "*_ce"
--   internal version of output port:       "*_i"
--   device pins:                           "*_pin"
--   ports:                                 "- Names begin with Uppercase"
--   processes:                             "*_PROCESS"
--   component instantiations:              "I_<#|FUNC>"
------------------------------------------------------------------------------

library ieee;
use ieee.std_logic_1164.all;
use ieee.std_logic_arith.all;
use ieee.std_logic_unsigned.all;

library proc_common_v3_00_a;
use proc_common_v3_00_a.proc_common_pkg.all;
use proc_common_v3_00_a.ipif_pkg.all;

library axi_lite_ipif_v1_01_a;
use axi_lite_ipif_v1_01_a.axi_lite_ipif;

------------------------------------------------------------------------------
-- Entity section
------------------------------------------------------------------------------
-- Definition of Generics:
--   C_S_AXI_DATA_WIDTH           -- AXI4LITE slave: Data width
--   C_S_AXI_ADDR_WIDTH           -- AXI4LITE slave: Address Width
--   C_S_AXI_MIN_SIZE             -- AXI4LITE slave: Min Size
--   C_USE_WSTRB                  -- AXI4LITE slave: Write Strobe
--   C_DPHASE_TIMEOUT             -- AXI4LITE slave: Data Phase Timeout
--   C_BASEADDR                   -- AXI4LITE slave: base address
--   C_HIGHADDR                   -- AXI4LITE slave: high address
--   C_FAMILY                     -- FPGA Family
--   C_NUM_REG                    -- Number of software accessible registers
--   C_NUM_MEM                    -- Number of address-ranges
--   C_SLV_AWIDTH                 -- Slave interface address bus width
--   C_SLV_DWIDTH                 -- Slave interface data bus width
--
-- Definition of Ports:
--   S_AXI_ACLK                   -- AXI4LITE slave: Clock
--   S_AXI_ARESETN                -- AXI4LITE slave: Reset
--   S_AXI_AWADDR                 -- AXI4LITE slave: Write address
--   S_AXI_AWVALID                -- AXI4LITE slave: Write address valid
--   S_AXI_WDATA                  -- AXI4LITE slave: Write data
--   S_AXI_WSTRB                  -- AXI4LITE slave: Write strobe
--   S_AXI_WVALID                 -- AXI4LITE slave: Write data valid
--   S_AXI_BREADY                 -- AXI4LITE slave: Response ready
--   S_AXI_ARADDR                 -- AXI4LITE slave: Read address
--   S_AXI_ARVALID                -- AXI4LITE slave: Read address valid
--   S_AXI_RREADY                 -- AXI4LITE slave: Read data ready
--   S_AXI_ARREADY                -- AXI4LITE slave: read addres ready
--   S_AXI_RDATA                  -- AXI4LITE slave: Read data
--   S_AXI_RRESP                  -- AXI4LITE slave: Read data response
--   S_AXI_RVALID                 -- AXI4LITE slave: Read data valid
--   S_AXI_WREADY                 -- AXI4LITE slave: Write data ready
--   S_AXI_BRESP                  -- AXI4LITE slave: Response
--   S_AXI_BVALID                 -- AXI4LITE slave: Resonse valid
--   S_AXI_AWREADY                -- AXI4LITE slave: Wrte address ready
------------------------------------------------------------------------------

entity vga is
  generic
  (
    -- ADD USER GENERICS BELOW THIS LINE ---------------
    --USER generics added here
    -- ADD USER GENERICS ABOVE THIS LINE ---------------

    -- DO NOT EDIT BELOW THIS LINE ---------------------
    -- Bus protocol parameters, do not add to or delete
    C_S_AXI_DATA_WIDTH             : integer              := 32;
    C_S_AXI_ADDR_WIDTH             : integer              := 32;
    C_S_AXI_MIN_SIZE               : std_logic_vector     := X"000001FF";
    C_USE_WSTRB                    : integer              := 0;
    C_DPHASE_TIMEOUT               : integer              := 8;
    C_BASEADDR                     : std_logic_vector     := X"FFFFFFFF";
    C_HIGHADDR                     : std_logic_vector     := X"00000000";
    C_FAMILY                       : string               := "virtex6";
    C_NUM_REG                      : integer              := 1;
    C_NUM_MEM                      : integer              := 1;
    C_SLV_AWIDTH                   : integer              := 32;
    C_SLV_DWIDTH                   : integer              := 32
    -- DO NOT EDIT ABOVE THIS LINE ---------------------
  );
  port
  (
    -- ADD USER PORTS BELOW THIS LINE ------------------
    --USER ports added here






    -- ADD USER PORTS ABOVE THIS LINE ------------------

    -- DO NOT EDIT BELOW THIS LINE ---------------------
    -- Bus protocol ports, do not add to or delete
    S_AXI_ACLK                     : in  std_logic;
    S_AXI_ARESETN                  : in  std_logic;
    S_AXI_AWADDR                   : in  std_logic_vector(C_S_AXI_ADDR_WIDTH-1 downto 0);
    S_AXI_AWVALID                  : in  std_logic;
    S_AXI_WDATA                    : in  std_logic_vector(C_S_AXI_DATA_WIDTH-1 downto 0);
    S_AXI_WSTRB                    : in  std_logic_vector((C_S_AXI_DATA_WIDTH/8)-1 downto 0);
    S_AXI_WVALID                   : in  std_logic;
    S_AXI_BREADY                   : in  std_logic;
    S_AXI_ARADDR                   : in  std_logic_vector(C_S_AXI_ADDR_WIDTH-1 downto 0);
    S_AXI_ARVALID                  : in  std_logic;
    S_AXI_RREADY                   : in  std_logic;
    S_AXI_ARREADY                  : out std_logic;
    S_AXI_RDATA                    : out std_logic_vector(C_S_AXI_DATA_WIDTH-1 downto 0);
    S_AXI_RRESP                    : out std_logic_vector(1 downto 0);
    S_AXI_RVALID                   : out std_logic;
    S_AXI_WREADY                   : out std_logic;
    S_AXI_BRESP                    : out std_logic_vector(1 downto 0);
    S_AXI_BVALID                   : out std_logic;
    S_AXI_AWREADY                  : out std_logic
    -- DO NOT EDIT ABOVE THIS LINE ---------------------
  );

  attribute MAX_FANOUT : string;
  attribute SIGIS : string;
  attribute MAX_FANOUT of S_AXI_ACLK       : signal is "10000";
  attribute MAX_FANOUT of S_AXI_ARESETN       : signal is "10000";
  attribute SIGIS of S_AXI_ACLK       : signal is "Clk";
  attribute SIGIS of S_AXI_ARESETN       : signal is "Rst";
end entity vga;

------------------------------------------------------------------------------
-- Architecture section
------------------------------------------------------------------------------

architecture IMP of vga is

  constant USER_SLV_DWIDTH                : integer              := C_S_AXI_DATA_WIDTH;

  constant IPIF_SLV_DWIDTH                : integer              := C_S_AXI_DATA_WIDTH;

  constant ZERO_ADDR_PAD                  : std_logic_vector(0 to 31) := (others => '0');
  constant USER_SLV_BASEADDR              : std_logic_vector     := C_BASEADDR;
  constant USER_SLV_HIGHADDR              : std_logic_vector     := C_HIGHADDR;

  constant IPIF_ARD_ADDR_RANGE_ARRAY      : SLV64_ARRAY_TYPE     :=
    (
      ZERO_ADDR_PAD & USER_SLV_BASEADDR,  -- user logic slave space base address
      ZERO_ADDR_PAD & USER_SLV_HIGHADDR   -- user logic slave space high address
    );

  constant USER_SLV_NUM_REG               : integer              := 1;
  constant USER_NUM_REG                   : integer              := USER_SLV_NUM_REG;
  constant TOTAL_IPIF_CE                  : integer              := USER_NUM_REG;

  constant IPIF_ARD_NUM_CE_ARRAY          : INTEGER_ARRAY_TYPE   :=
    (
      0  => (USER_SLV_NUM_REG)            -- number of ce for user logic slave space
    );

  ------------------------------------------
  -- Index for CS/CE
  ------------------------------------------
  constant USER_SLV_CS_INDEX              : integer := 0;
  constant USER_SLV_CE_INDEX              : integer := calc_start_ce_index(IPIF_ARD_NUM_CE_ARRAY, USER_SLV_CS_INDEX);

  constant USER_CE_INDEX                  : integer := USER_SLV_CE_INDEX;

  ------------------------------------------
  -- IP Interconnect (IPIC) signal declarations
  ------------------------------------------
  signal ipif_Bus2IP_Clk                : std_logic;
  signal ipif_Bus2IP_Resetn             : std_logic;
  signal ipif_Bus2IP_Addr               : std_logic_vector(C_S_AXI_ADDR_WIDTH-1 downto 0);
  signal ipif_Bus2IP_RNW                : std_logic;
  signal ipif_Bus2IP_BE                 : std_logic_vector(IPIF_SLV_DWIDTH/8-1 downto 0);
  signal ipif_Bus2IP_CS                 : std_logic_vector((IPIF_ARD_ADDR_RANGE_ARRAY'LENGTH)/2-1 downto 0);
  signal ipif_Bus2IP_RdCE               : std_logic_vector(calc_num_ce(IPIF_ARD_NUM_CE_ARRAY)-1 downto 0);
  signal ipif_Bus2IP_WrCE               : std_logic_vector(calc_num_ce(IPIF_ARD_NUM_CE_ARRAY)-1 downto 0);
  signal ipif_Bus2IP_Data               : std_logic_vector(IPIF_SLV_DWIDTH-1 downto 0);
  signal ipif_IP2Bus_WrAck              : std_logic;
  signal ipif_IP2Bus_RdAck              : std_logic;
  signal ipif_IP2Bus_Error              : std_logic;
  signal ipif_IP2Bus_Data               : std_logic_vector(IPIF_SLV_DWIDTH-1 downto 0);
  signal user_Bus2IP_RdCE               : std_logic_vector(USER_NUM_REG-1 downto 0);
  signal user_Bus2IP_WrCE               : std_logic_vector(USER_NUM_REG-1 downto 0);
  signal user_IP2Bus_Data               : std_logic_vector(USER_SLV_DWIDTH-1 downto 0);
  signal user_IP2Bus_RdAck              : std_logic;
  signal user_IP2Bus_WrAck              : std_logic;
  signal user_IP2Bus_Error              : std_logic;

  ------------------------------------------
  -- Component declaration for verilog user logic
  ------------------------------------------
  component user_logic is
    generic
    (
      -- ADD USER GENERICS BELOW THIS LINE ---------------
      --USER generics added here
      -- ADD USER GENERICS ABOVE THIS LINE ---------------

      -- DO NOT EDIT BELOW THIS LINE ---------------------
      -- Bus protocol parameters, do not add to or delete
      C_NUM_REG                      : integer              := 1;
      C_SLV_DWIDTH                   : integer              := 32
      -- DO NOT EDIT ABOVE THIS LINE ---------------------
    );
    port
    (
      -- ADD USER PORTS BELOW THIS LINE ------------------
      --USER ports added here






      -- ADD USER PORTS ABOVE THIS LINE ------------------

      -- DO NOT EDIT BELOW THIS LINE ---------------------
      -- Bus protocol ports, do not add to or delete
      Bus2IP_Clk                     : in  std_logic;
      Bus2IP_Resetn                  : in  std_logic;
      Bus2IP_Addr                    : in  std_logic_vector(0 to 31);
      Bus2IP_Data                    : in  std_logic_vector(C_SLV_DWIDTH-1 downto 0);
      Bus2IP_BE                      : in  std_logic_vector(C_SLV_DWIDTH/8-1 downto 0);
      Bus2IP_RdCE                    : in  std_logic_vector(C_NUM_REG-1 downto 0);
      Bus2IP_WrCE                    : in  std_logic_vector(C_NUM_REG-1 downto 0);
      IP2Bus_Data                    : out std_logic_vector(C_SLV_DWIDTH-1 downto 0);
      IP2Bus_RdAck                   : out std_logic;
      IP2Bus_WrAck                   : out std_logic;
      IP2Bus_Error                   : out std_logic
      -- DO NOT EDIT ABOVE THIS LINE ---------------------
    );
  end component user_logic;

begin

  ------------------------------------------
  -- instantiate axi_lite_ipif
  ------------------------------------------
  AXI_LITE_IPIF_I : entity axi_lite_ipif_v1_01_a.axi_lite_ipif
    generic map
    (
      C_S_AXI_DATA_WIDTH             => IPIF_SLV_DWIDTH,
      C_S_AXI_ADDR_WIDTH             => C_S_AXI_ADDR_WIDTH,
      C_S_AXI_MIN_SIZE               => C_S_AXI_MIN_SIZE,
      C_USE_WSTRB                    => C_USE_WSTRB,
      C_DPHASE_TIMEOUT               => C_DPHASE_TIMEOUT,
      C_ARD_ADDR_RANGE_ARRAY         => IPIF_ARD_ADDR_RANGE_ARRAY,
      C_ARD_NUM_CE_ARRAY             => IPIF_ARD_NUM_CE_ARRAY,
      C_FAMILY                       => C_FAMILY
    )
    port map
    (
      S_AXI_ACLK                     => S_AXI_ACLK,
      S_AXI_ARESETN                  => S_AXI_ARESETN,
      S_AXI_AWADDR                   => S_AXI_AWADDR,
      S_AXI_AWVALID                  => S_AXI_AWVALID,
      S_AXI_WDATA                    => S_AXI_WDATA,
      S_AXI_WSTRB                    => S_AXI_WSTRB,
      S_AXI_WVALID                   => S_AXI_WVALID,
      S_AXI_BREADY                   => S_AXI_BREADY,
      S_AXI_ARADDR                   => S_AXI_ARADDR,
      S_AXI_ARVALID                  => S_AXI_ARVALID,
      S_AXI_RREADY                   => S_AXI_RREADY,
      S_AXI_ARREADY                  => S_AXI_ARREADY,
      S_AXI_RDATA                    => S_AXI_RDATA,
      S_AXI_RRESP                    => S_AXI_RRESP,
      S_AXI_RVALID                   => S_AXI_RVALID,
      S_AXI_WREADY                   => S_AXI_WREADY,
      S_AXI_BRESP                    => S_AXI_BRESP,
      S_AXI_BVALID                   => S_AXI_BVALID,
      S_AXI_AWREADY                  => S_AXI_AWREADY,
      Bus2IP_Clk                     => ipif_Bus2IP_Clk,
      Bus2IP_Resetn                  => ipif_Bus2IP_Resetn,
      Bus2IP_Addr                    => ipif_Bus2IP_Addr,
      Bus2IP_RNW                     => ipif_Bus2IP_RNW,
      Bus2IP_BE                      => ipif_Bus2IP_BE,
      Bus2IP_CS                      => ipif_Bus2IP_CS,
      Bus2IP_RdCE                    => ipif_Bus2IP_RdCE,
      Bus2IP_WrCE                    => ipif_Bus2IP_WrCE,
      Bus2IP_Data                    => ipif_Bus2IP_Data,
      IP2Bus_WrAck                   => ipif_IP2Bus_WrAck,
      IP2Bus_RdAck                   => ipif_IP2Bus_RdAck,
      IP2Bus_Error                   => ipif_IP2Bus_Error,
      IP2Bus_Data                    => ipif_IP2Bus_Data
    );

  ------------------------------------------
  -- instantiate User Logic
  ------------------------------------------
  USER_LOGIC_I : component user_logic
    generic map
    (
      -- MAP USER GENERICS BELOW THIS LINE ---------------
      --USER generics mapped here
      -- MAP USER GENERICS ABOVE THIS LINE ---------------

      C_NUM_REG                      => USER_NUM_REG,
      C_SLV_DWIDTH                   => USER_SLV_DWIDTH
    )
    port map
    (
      -- MAP USER PORTS BELOW THIS LINE ------------------






      --USER ports mapped here
      -- MAP USER PORTS ABOVE THIS LINE ------------------

      Bus2IP_Clk                     => ipif_Bus2IP_Clk,
      Bus2IP_Resetn                  => ipif_Bus2IP_Resetn,
      Bus2IP_Addr                    => ipif_Bus2IP_Addr,
      Bus2IP_Data                    => ipif_Bus2IP_Data,
      Bus2IP_BE                      => ipif_Bus2IP_BE,
      Bus2IP_RdCE                    => user_Bus2IP_RdCE,
      Bus2IP_WrCE                    => user_Bus2IP_WrCE,
      IP2Bus_Data                    => user_IP2Bus_Data,
      IP2Bus_RdAck                   => user_IP2Bus_RdAck,
      IP2Bus_WrAck                   => user_IP2Bus_WrAck,
      IP2Bus_Error                   => user_IP2Bus_Error
    );

  ------------------------------------------
  -- connect internal signals
  ------------------------------------------
  ipif_IP2Bus_Data <= user_IP2Bus_Data;
  ipif_IP2Bus_WrAck <= user_IP2Bus_WrAck;
  ipif_IP2Bus_RdAck <= user_IP2Bus_RdAck;
  ipif_IP2Bus_Error <= user_IP2Bus_Error;

  user_Bus2IP_RdCE <= ipif_Bus2IP_RdCE(USER_NUM_REG-1 downto 0);
  user_Bus2IP_WrCE <= ipif_Bus2IP_WrCE(USER_NUM_REG-1 downto 0);

end IMP;
Next, video controller is described to "user_logic.v". "user_logic.v" is described in Verilog HDL.
$ cd ../verilog
$ gedit user_logic.v
After modifying（Add only red lines） Before modifying（Delete only red lines）
//----------------------------------------------------------------------------
// user_logic.v - module
//----------------------------------------------------------------------------
//
// ***************************************************************************
// ** Copyright (c) 1995-2012 Xilinx, Inc.  All rights reserved.            **
// **                                                                       **
// ** Xilinx, Inc.                                                          **
// ** XILINX IS PROVIDING THIS DESIGN, CODE, OR INFORMATION "AS IS"         **
// ** AS A COURTESY TO YOU, SOLELY FOR USE IN DEVELOPING PROGRAMS AND       **
// ** SOLUTIONS FOR XILINX DEVICES.  BY PROVIDING THIS DESIGN, CODE,        **
// ** OR INFORMATION AS ONE POSSIBLE IMPLEMENTATION OF THIS FEATURE,        **
// ** APPLICATION OR STANDARD, XILINX IS MAKING NO REPRESENTATION           **
// ** THAT THIS IMPLEMENTATION IS FREE FROM ANY CLAIMS OF INFRINGEMENT,     **
// ** AND YOU ARE RESPONSIBLE FOR OBTAINING ANY RIGHTS YOU MAY REQUIRE      **
// ** FOR YOUR IMPLEMENTATION.  XILINX EXPRESSLY DISCLAIMS ANY              **
// ** WARRANTY WHATSOEVER WITH RESPECT TO THE ADEQUACY OF THE               **
// ** IMPLEMENTATION, INCLUDING BUT NOT LIMITED TO ANY WARRANTIES OR        **
// ** REPRESENTATIONS THAT THIS IMPLEMENTATION IS FREE FROM CLAIMS OF       **
// ** INFRINGEMENT, IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS       **
// ** FOR A PARTICULAR PURPOSE.                                             **
// **                                                                       **
// ***************************************************************************
//
//----------------------------------------------------------------------------
// Filename:          user_logic.v
// Version:           1.00.a
// Description:       User logic module.
// Date:              Fri Dec 14 18:03:10 2012 (by Create and Import Peripheral Wizard)
// Verilog Standard:  Verilog-2001
//----------------------------------------------------------------------------
// Naming Conventions:
//   active low signals:                    "*_n"
//   clock signals:                         "clk", "clk_div#", "clk_#x"
//   reset signals:                         "rst", "rst_n"
//   generics:                              "C_*"
//   user defined types:                    "*_TYPE"
//   state machine next state:              "*_ns"
//   state machine current state:           "*_cs"
//   combinatorial signals:                 "*_com"
//   pipelined or register delay signals:   "*_d#"
//   counter signals:                       "*cnt*"
//   clock enable signals:                  "*_ce"
//   internal version of output port:       "*_i"
//   device pins:                           "*_pin"
//   ports:                                 "- Names begin with Uppercase"
//   processes:                             "*_PROCESS"
//   component instantiations:              "I_<#|FUNC>"
//----------------------------------------------------------------------------

`uselib lib=unisims_ver
`uselib lib=proc_common_v3_00_a

`define HMAX 100 // H total dots
`define HSIZ  80 // H Size
`define HSP   87 // H Sync. Pos.
`define HSL    2 // H Sync. Len.
`define HCR   16 // H dots per Char.
`define VMAX  47 // V total Line
`define VSIZ  45 // V Size
`define VSP   46 // V Sync. Pos.
`define VSL    1 // V Sync. Line
`define VCR   16 // V lines per Char.

module user_logic
(
  // -- ADD USER PORTS BELOW THIS LINE ---------------
  // --USER ports added here
  R, G, B, HS, VS, DE,
  // -- ADD USER PORTS ABOVE THIS LINE ---------------

  // -- DO NOT EDIT BELOW THIS LINE ------------------
  // -- Bus protocol ports, do not add to or delete
  Bus2IP_Clk,                     // Bus to IP clock
  Bus2IP_Resetn,                  // Bus to IP reset
  Bus2IP_Addr,                    // Bus to IP address bus
  Bus2IP_Data,                    // Bus to IP data bus
  Bus2IP_BE,                      // Bus to IP byte enables
  Bus2IP_RdCE,                    // Bus to IP read chip enable
  Bus2IP_WrCE,                    // Bus to IP write chip enable
  IP2Bus_Data,                    // IP to Bus data bus
  IP2Bus_RdAck,                   // IP to Bus read transfer acknowledgement
  IP2Bus_WrAck,                   // IP to Bus write transfer acknowledgement
  IP2Bus_Error                    // IP to Bus error response
  // -- DO NOT EDIT ABOVE THIS LINE ------------------
); // user_logic

// -- ADD USER PARAMETERS BELOW THIS LINE ------------
// --USER parameters added here
// -- ADD USER PARAMETERS ABOVE THIS LINE ------------

// -- DO NOT EDIT BELOW THIS LINE --------------------
// -- Bus protocol parameters, do not add to or delete
parameter C_NUM_REG                      = 1;
parameter C_SLV_DWIDTH                   = 32;
// -- DO NOT EDIT ABOVE THIS LINE --------------------

// -- ADD USER PORTS BELOW THIS LINE -----------------
// --USER ports added here
output [7:0] R, G, B;
output       HS, VS, DE;
// -- ADD USER PORTS ABOVE THIS LINE -----------------

// -- DO NOT EDIT BELOW THIS LINE --------------------
// -- Bus protocol ports, do not add to or delete
input                                     Bus2IP_Clk;
input                                     Bus2IP_Resetn;
input      [0 : 31]                       Bus2IP_Addr;
input      [C_SLV_DWIDTH-1 : 0]           Bus2IP_Data;
input      [C_SLV_DWIDTH/8-1 : 0]         Bus2IP_BE;
input      [C_NUM_REG-1 : 0]              Bus2IP_RdCE;
input      [C_NUM_REG-1 : 0]              Bus2IP_WrCE;
output     [C_SLV_DWIDTH-1 : 0]           IP2Bus_Data;
output                                    IP2Bus_RdAck;
output                                    IP2Bus_WrAck;
output                                    IP2Bus_Error;
// -- DO NOT EDIT ABOVE THIS LINE --------------------

//----------------------------------------------------------------------------
// Implementation
//----------------------------------------------------------------------------

  // --USER nets declarations added here, as needed for user logic

  reg   [C_SLV_DWIDTH-1 : 0]      IP2Bus_Data;
  reg                             IP2Bus_RdAck;

  reg   [0:7]       VRAM [0:4095];
  reg   [0:`HCR-1]  CGROM[0:4095];

  initial
    begin
      $readmemh( "MB_VRAM.mem",     VRAM  );
      $readmemh( "18x18ja_256.mem", CGROM );
    end

  reg    [7:0] HCNT;  // H Counter 0-99
  reg    [6:0] VCNT;  // V Counter 0-27
  reg    [4:0] RCNT;  // R Counter 0-18

  wire       CEP;
  reg  [3:0] CNT;

  wire [0:14] VADR;// VideoRAM Address

  reg  [0: 7]      CCOD;// Character Code
  wire [0:11]      CGADR;// CGROM Address
  reg  [0:`HCR-1]  CGDATA;// Character Raster Data

  reg  [0:`HCR-1]  SR;// Shift Register

  // USER logic implementation added here

  always @( posedge Bus2IP_Clk )
    if( Bus2IP_WrCE[0]  )
      VRAM[ Bus2IP_Addr[0:29] ] = Bus2IP_Data[7:0];

  always @( posedge Bus2IP_Clk )
    begin
     IP2Bus_Data = { 24'h00_0000, VRAM[Bus2IP_Addr[0:29] ] };
     IP2Bus_RdAck= Bus2IP_RdCE[0];
    end

  always @( posedge Bus2IP_Clk )
     if( ~Bus2IP_Resetn ) CNT <= 0; else
                        CNT <= CNT + 1;

  assign CEP  = &CNT;   //  3.125MHz 1/16 for character clock

  assign VADR = VCNT * `HSIZ + HCNT;

  // Counter
  always @( posedge Bus2IP_Clk )
    if( CEP )
      CCOD <= VRAM[VADR];

  // Counter
  always @( posedge Bus2IP_Clk )
    begin
      if( ~Bus2IP_Resetn ) begin HCNT<=0; RCNT<=0; VCNT<=0; end
      if( CEP )
        begin
          if( HCNT == `HMAX-1 )
            begin
              HCNT <= 0;
              if( RCNT == `VCR-1 )
                begin
                  RCNT <= 0;
                  if( VCNT == `VMAX-1 ) VCNT <= 0;
                  else                  VCNT <= VCNT + 1;
                end
              else
                RCNT <= RCNT + 1;
            end
          else
            HCNT <= HCNT + 1;
        end
     end


  assign CGADR = { CCOD, RCNT[3:0] };

   always @( posedge Bus2IP_Clk )
     CGDATA= CGROM[ CGADR ];

   always @( posedge Bus2IP_Clk )
     begin
     if ( ~Bus2IP_Resetn ) SR <= 0;      else
     if ( CEP  ) SR <= CGDATA;         else
                 SR <= { SR[1:`HCR-1], 1'b0 };
     end

   //Sync
   assign HS = ~( HCNT >= `HSP & HCNT < (`HSP + `HSL) );
   assign VS = ~( VCNT >= `VSP & VCNT < (`VSP + `VSL) );

   assign R = ( SR[0] ) ? 8'hff : 8'h00;
   assign G = ( SR[0] ) ? 8'hff : 8'h00;
   assign B = ( SR[0] ) ? 8'hff : 8'h00;
   assign DE = ( ( 1 < HCNT & HCNT < `HSIZ+2 ) & ( VCNT < `VSIZ ) & (RCNT < 16 ) );

  // ------------------------------------------------------------
  // Example code to drive IP to Bus signals
  // ------------------------------------------------------------

  assign IP2Bus_WrAck = Bus2IP_WrCE[0];


  assign IP2Bus_Error = 0;

endmodule

//----------------------------------------------------------------------------
// user_logic.v - module
//----------------------------------------------------------------------------
//
// ***************************************************************************
// ** Copyright (c) 1995-2012 Xilinx, Inc.  All rights reserved.            **
// **                                                                       **
// ** Xilinx, Inc.                                                          **
// ** XILINX IS PROVIDING THIS DESIGN, CODE, OR INFORMATION "AS IS"         **
// ** AS A COURTESY TO YOU, SOLELY FOR USE IN DEVELOPING PROGRAMS AND       **
// ** SOLUTIONS FOR XILINX DEVICES.  BY PROVIDING THIS DESIGN, CODE,        **
// ** OR INFORMATION AS ONE POSSIBLE IMPLEMENTATION OF THIS FEATURE,        **
// ** APPLICATION OR STANDARD, XILINX IS MAKING NO REPRESENTATION           **
// ** THAT THIS IMPLEMENTATION IS FREE FROM ANY CLAIMS OF INFRINGEMENT,     **
// ** AND YOU ARE RESPONSIBLE FOR OBTAINING ANY RIGHTS YOU MAY REQUIRE      **
// ** FOR YOUR IMPLEMENTATION.  XILINX EXPRESSLY DISCLAIMS ANY              **
// ** WARRANTY WHATSOEVER WITH RESPECT TO THE ADEQUACY OF THE               **
// ** IMPLEMENTATION, INCLUDING BUT NOT LIMITED TO ANY WARRANTIES OR        **
// ** REPRESENTATIONS THAT THIS IMPLEMENTATION IS FREE FROM CLAIMS OF       **
// ** INFRINGEMENT, IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS       **
// ** FOR A PARTICULAR PURPOSE.                                             **
// **                                                                       **
// ***************************************************************************
//
//----------------------------------------------------------------------------
// Filename:          user_logic.v
// Version:           1.00.a
// Description:       User logic module.
// Date:              Thu Nov  6 13:25:19 2014 (by Create and Import Peripheral Wizard)
// Verilog Standard:  Verilog-2001
//----------------------------------------------------------------------------
// Naming Conventions:
//   active low signals:                    "*_n"
//   clock signals:                         "clk", "clk_div#", "clk_#x"
//   reset signals:                         "rst", "rst_n"
//   generics:                              "C_*"
//   user defined types:                    "*_TYPE"
//   state machine next state:              "*_ns"
//   state machine current state:           "*_cs"
//   combinatorial signals:                 "*_com"
//   pipelined or register delay signals:   "*_d#"
//   counter signals:                       "*cnt*"
//   clock enable signals:                  "*_ce"
//   internal version of output port:       "*_i"
//   device pins:                           "*_pin"
//   ports:                                 "- Names begin with Uppercase"
//   processes:                             "*_PROCESS"
//   component instantiations:              "I_<#|FUNC>"
//----------------------------------------------------------------------------

`uselib lib=unisims_ver
`uselib lib=proc_common_v3_00_a











module user_logic
(
  // -- ADD USER PORTS BELOW THIS LINE ---------------
  // --USER ports added here
  // -- ADD USER PORTS ABOVE THIS LINE ---------------

  // -- DO NOT EDIT BELOW THIS LINE ------------------
  // -- Bus protocol ports, do not add to or delete
  Bus2IP_Clk,                     // Bus to IP clock
  Bus2IP_Resetn,                  // Bus to IP reset
  Bus2IP_Addr,                    // Bus to IP address bus
  Bus2IP_Data,                    // Bus to IP data bus
  Bus2IP_BE,                      // Bus to IP byte enables
  Bus2IP_RdCE,                    // Bus to IP read chip enable
  Bus2IP_WrCE,                    // Bus to IP write chip enable
  IP2Bus_Data,                    // IP to Bus data bus
  IP2Bus_RdAck,                   // IP to Bus read transfer acknowledgement
  IP2Bus_WrAck,                   // IP to Bus write transfer acknowledgement
  IP2Bus_Error                    // IP to Bus error response
  // -- DO NOT EDIT ABOVE THIS LINE ------------------
); // user_logic

// -- ADD USER PARAMETERS BELOW THIS LINE ------------
// --USER parameters added here
// -- ADD USER PARAMETERS ABOVE THIS LINE ------------

// -- DO NOT EDIT BELOW THIS LINE --------------------
// -- Bus protocol parameters, do not add to or delete
parameter C_NUM_REG                      = 1;
parameter C_SLV_DWIDTH                   = 32;
// -- DO NOT EDIT ABOVE THIS LINE --------------------

// -- ADD USER PORTS BELOW THIS LINE -----------------
// --USER ports added here


// -- ADD USER PORTS ABOVE THIS LINE -----------------

// -- DO NOT EDIT BELOW THIS LINE --------------------
// -- Bus protocol ports, do not add to or delete
input                                     Bus2IP_Clk;
input                                     Bus2IP_Resetn;
input      [0 : 31]                       Bus2IP_Addr;
input      [C_SLV_DWIDTH-1 : 0]           Bus2IP_Data;
input      [C_SLV_DWIDTH/8-1 : 0]         Bus2IP_BE;
input      [C_NUM_REG-1 : 0]              Bus2IP_RdCE;
input      [C_NUM_REG-1 : 0]              Bus2IP_WrCE;
output     [C_SLV_DWIDTH-1 : 0]           IP2Bus_Data;
output                                    IP2Bus_RdAck;
output                                    IP2Bus_WrAck;
output                                    IP2Bus_Error;
// -- DO NOT EDIT ABOVE THIS LINE --------------------

//----------------------------------------------------------------------------
// Implementation
//----------------------------------------------------------------------------

  // --USER nets declarations added here, as needed for user logic

  // Nets for user logic slave model s/w accessible register example
  reg        [C_SLV_DWIDTH-1 : 0]           slv_reg0;
  wire       [0 : 0]                        slv_reg_write_sel;
  wire       [0 : 0]                        slv_reg_read_sel;
  reg        [C_SLV_DWIDTH-1 : 0]           slv_ip2bus_data;
  wire                                      slv_read_ack;
  wire                                      slv_write_ack;
  integer                                   byte_index, bit_index;



















  // USER logic implementation added here

  // ------------------------------------------------------
  // Example code to read/write user logic slave model s/w accessible registers
  //
  // Note:
  // The example code presented here is to show you one way of reading/writing
  // software accessible registers implemented in the user logic slave model.
  // Each bit of the Bus2IP_WrCE/Bus2IP_RdCE signals is configured to correspond
  // to one software accessible register by the top level template. For example,
  // if you have four 32 bit software accessible registers in the user logic,
  // you are basically operating on the following memory mapped registers:
  //
  //    Bus2IP_WrCE/Bus2IP_RdCE   Memory Mapped Register
  //                     "1000"   C_BASEADDR + 0x0
  //                     "0100"   C_BASEADDR + 0x4
  //                     "0010"   C_BASEADDR + 0x8
  //                     "0001"   C_BASEADDR + 0xC
  //
  // ------------------------------------------------------

  assign
    slv_reg_write_sel = Bus2IP_WrCE[0:0],
    slv_reg_read_sel  = Bus2IP_RdCE[0:0],
    slv_write_ack     = Bus2IP_WrCE[0],
    slv_read_ack      = Bus2IP_RdCE[0];

  // implement slave model register(s)
  always @( posedge Bus2IP_Clk )
    begin

      if ( Bus2IP_Resetn == 1'b0 )
        begin
          slv_reg0 <= 0;
        end
      else
        case ( slv_reg_write_sel )
          1'b1 :
            for ( byte_index = 0; byte_index <= (C_SLV_DWIDTH/8)-1; byte_index = byte_index+1 )
              if ( Bus2IP_BE[byte_index] == 1 )
                slv_reg0[(byte_index*8) +: 8] <= Bus2IP_Data[(byte_index*8) +: 8];
          default : begin
            slv_reg0 <= slv_reg0;
                    end
        endcase

    end // SLAVE_REG_WRITE_PROC

  // implement slave model register read mux
  always @( slv_reg_read_sel or slv_reg0 )
    begin

      case ( slv_reg_read_sel )
        1'b1 : slv_ip2bus_data <= slv_reg0;
        default : slv_ip2bus_data <= 0;
      endcase

    end // SLAVE_REG_READ_PROC
















  // ------------------------------------------------------------
  // Example code to drive IP to Bus signals
  // ------------------------------------------------------------

assign IP2Bus_Data = (slv_read_ack == 1'b1) ? slv_ip2bus_data :  0 ;
  assign IP2Bus_WrAck = slv_write_ack;
  assign IP2Bus_RdAck = slv_read_ack;
  assign IP2Bus_Error = 0;

endmodule


Two memories in video controller are initialized by memory initialize files.
Below two files are got from following links, and save to "pcores/vga_v1_00_a/hdl/verilog" directory.

MB_VRAM.mem (It is initialize file for video memory)
18x18ja_256.mem (This font was created from "18x18ja.bdf" in "font-misc-misc-1.0.0.tar.gz" for X11 font file.)

Next, becouse output terminals, R, G, B, HS, VS, DE are added for video output, the information is added to "*.mpd" file.
$ cd ../../data/
$ gedit vga_v2_1_0.mpd
Following information is added to below "## Bus Interfaces" line and "## Ports" line.
## Bus Interfaces
BUS_INTERFACE BUS = S_AXI, BUS_STD = AXI, BUS_TYPE = SLAVE
BUS_INTERFACE BUS = DVI_VIDEO_OUT, BUS_STD = DVI_VIDEO, BUS_TYPE = INITIATOR

## Ports
PORT R  = red,   DIR = O, VEC = [7:0], BUS = DVI_VIDEO_OUT
PORT G  = green, DIR = O, VEC = [7:0], BUS = DVI_VIDEO_OUT
PORT B  = blue,  DIR = O, VEC = [7:0], BUS = DVI_VIDEO_OUT
PORT HS = hsync, DIR = O, BUS = DVI_VIDEO_OUT
PORT VS = vsync, DIR = O, BUS = DVI_VIDEO_OUT
PORT DE = de,    DIR = O, BUS = DVI_VIDEO_OUT
PORT S_AXI_ACLK = "", DIR = I, SIGIS = CLK, BUS = S_AXI
It is finished to describe the video controller.
Next, create a DVI encoder module.
