The decoder and sequencer of the KITE-1 microprocessor

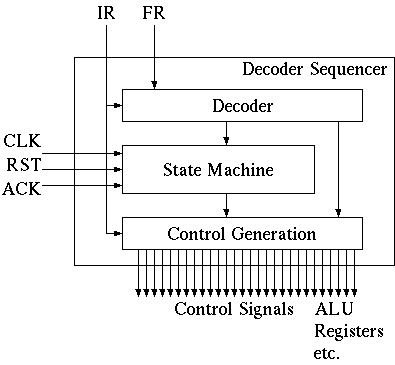

The block diagram of the decoder sequencer of the KITE-1 microprocessor is shown below.
A decoder and a sequencer are composed of decoder, State machine, three modules of the control signal generation like a logic circuit.
However, when designing by the hardware-description-language, it designs these three modules, dividing them, being clear and haven't been held.
Therefore, it designs a decoder and a sequencer as one module of the hardware-description-language.
It designs a decoder sequencer by the following procedure and it simulates it.
Well, input/output definition of decoder sequencer attempts to have.
